SELECT A DIAGRAM

01 - Backguard Parts Models Rhs365 & Rjs 369


02 - Gas Components


03 - Lower Oven Assy


04 - Lower Storage Drawer


05 - Oven Door Parts


06 - Oven Electrical Components


07 - Page 1

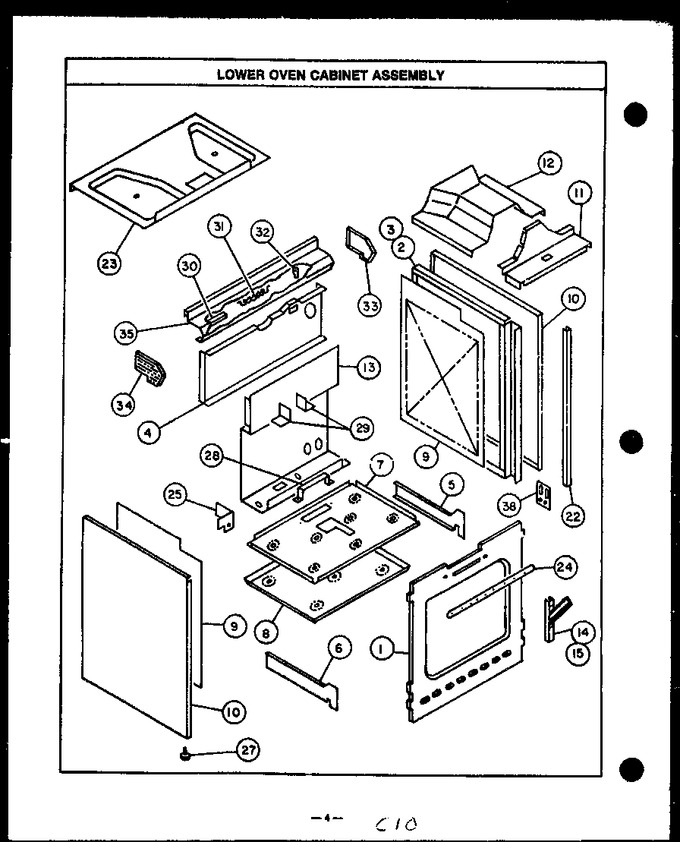

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10124597		Front Frame		Appelez-nous	-
2	W10125041		Side Frame - R.h.		Appelez-nous	-
3	0062995		Sub 61127cg, Side Frame Lh		Appelez-nous	-
4	W10125044		Support Brkt., Oven Shell		Appelez-nous	-
5	0062698		Track, Stor. Drwr., R.h.		Appelez-nous	-
6	0062699		Track, L.h.		Appelez-nous	-
7	Y0063768		Retainer, Bottom Insul.		Appelez-nous	-
8	Y0063706		Shield, Heat		Appelez-nous	-
9	0062876		Retainer, Insulation		Appelez-nous	-
10	W10124845		Main End, Harvest		Appelez-nous	-
10	W10124847		Panel, Main End - R.h. - Almon		Appelez-nous	-
10	W10124846		Panel, Main End - R.h. - Almon		Appelez-nous	-
11	Y0062793		Retainer, Insul.		Appelez-nous	-
12	0062791		Retainer, Top Insul.		Appelez-nous	-
13	Y0062772		Sub 61816, Rear Panel, Lower		Appelez-nous	-
14	Y0066954		Kit, Door Hinge (rh-ss)		Appelez-nous	-
15	Y0066953		Kit, Door Hinge(lh-hs)		Appelez-nous	-
22	0062957		Trim, Side Panel		Appelez-nous	-
23	Y0062889		Burner Box		Appelez-nous	-
24	0062750		Sub 62750cg, Filler Front Fram		Appelez-nous	-
25	Y0062710		Cover Plate		Appelez-nous	-
27	Y0062362		Leg, Leveling		Appelez-nous	-
28	0063767		Cover, Br. Brnr. Ign.		Appelez-nous	-
29	0063758		Bracket, Gas Valve		Appelez-nous	-
30	0063794		Actuator, Bar		Appelez-nous	-
31	Y0070919		Spring		Appelez-nous	-
32	0066639		Cam		Appelez-nous	-
33	0063192		End Cap, Rh (chrome)		Appelez-nous	-
34	0063191		End Cap, Lh (chrome)		Appelez-nous	-
35	0060187		Control Panel		Appelez-nous	-
38	0062505		Sub 61748, Bracket, Door Inter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
