SELECT A DIAGRAM

Diagram for 01 - Body
01 - Body

Diagram for 02 - Control Panel/internal Controls
02 - Control Panel/internal Controls

Diagram for 03 - Door
03 - Door

Diagram for 04 - Oven
04 - Oven

No Diagram Image Available
05 - Supplemental Information

Diagram for 06 - Wiring Information
06 - Wiring Information

Diagram for 07 - Wiring Information (frc)
07 - Wiring Information (frc)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74008366 Cover, Top 10 Appelez-nous -
1 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

2 74009572 Bracket, Center Support 10 Appelez-nous -
2 74008428 Panel, Top Retainer 30`` 10 Appelez-nous -
2 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

3 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

3 74008762 Bottom, Wire Cover 10 Appelez-nous -
3 74008365 Cover, Main Back 10 Appelez-nous -
4 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

4 74009753 Trim, Side (rh-double) 10 Appelez-nous -
4 74009754 Trim, Side (lh-double) 10 Appelez-nous -
5 WPY706189 Screw   (Replaces: Y706189) 10 In-Stock Immediately $ 6.47

5 74008403 Trim, Bottom (blk) 10 Appelez-nous -
6 74008381 Panel, Side 10 Appelez-nous -
6 74010484 Panel, Side 10 Appelez-nous -
6 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

7 WP7403P899-60 Switch, High Limit   (Replaces: 74009837) 10 In-Stock Immediately $ 181.29

7 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

8 WP74011337 Receptacle, Hinge   (Replaces: 74010285) 11 Special Order $ 45.50

8 WP4159193 Screw (10-24x5/16-ni)   (Replaces: 7101P282-60) 10 Special Order $ 4.29

8 WP74011337 Receptacle, Hinge   (Replaces: 74011337) 12 Special Order $ 45.50

8 WP74011337 Receptacle, Hinge   (Replaces: 74008377) 10 Special Order $ 45.50

9 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

9 74010410 Retainer, Insulation (dbl 30``) 10 Appelez-nous -
9 74010409 Retainer, Insulation (upr) 10 Appelez-nous -
10 74008405 Insulation, Back 10 Appelez-nous -
11 74008406 Panel, Bottom (30``) 10 Appelez-nous -
11 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

12 74010414 Wrap, Insulation (30``) 10 Appelez-nous -
13 3807F678-45 Retainer, Bake Element (v)   (Replaces: 74008372) 10 Appelez-nous -
14 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

14 74008450 Channel, Vent 10 Appelez-nous -
14 74008446 Channel, Vent (double) 10 Appelez-nous -
15 74010499 Channel, Air 10 Appelez-nous -
16 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

16 74008356 Pan, Hidden Bake 10 Appelez-nous -
17 W10277609 Switch, Convection Hi-limit   (Replaces: 74010489) 10 Special Order $ 186.67

17 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

18 74010496 Foot, Oven 10 Appelez-nous -
19 74010503 Seal, Bottom 10 Appelez-nous -
20 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

20 74010504 Bracket, Bottom Cover 10 Appelez-nous -
21 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

21 74010506 Shield, Light 10 Appelez-nous -
22 74010518 Panel, Top Retainer (lwr) 10 Appelez-nous -
23 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

23 74008430 Cover, Main Back 10 Appelez-nous -
24 74010519 Baffle, Middle 10 Appelez-nous -
25 74008431 Trim, Center (blk) 10 Appelez-nous -
26 74008433 Support, Center 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

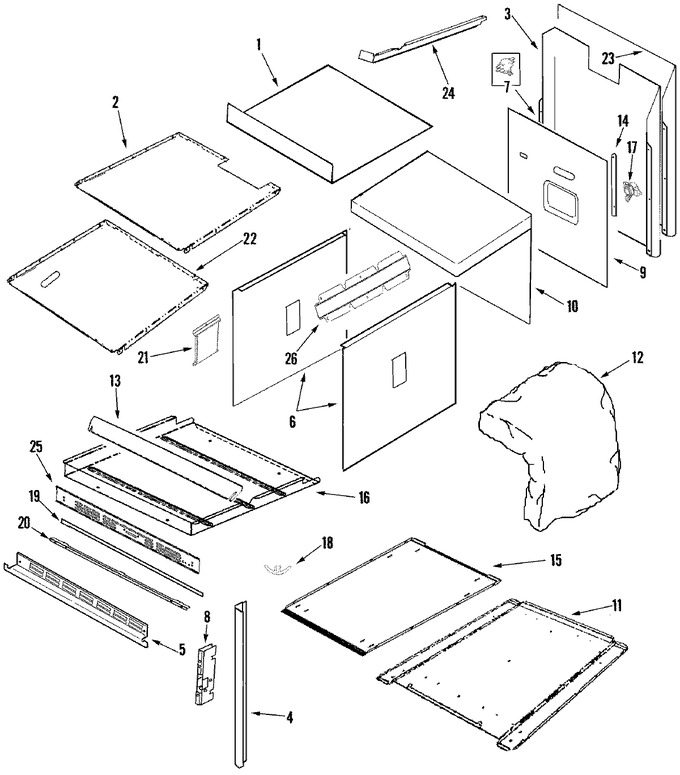

Diagram for RJDO3003A
