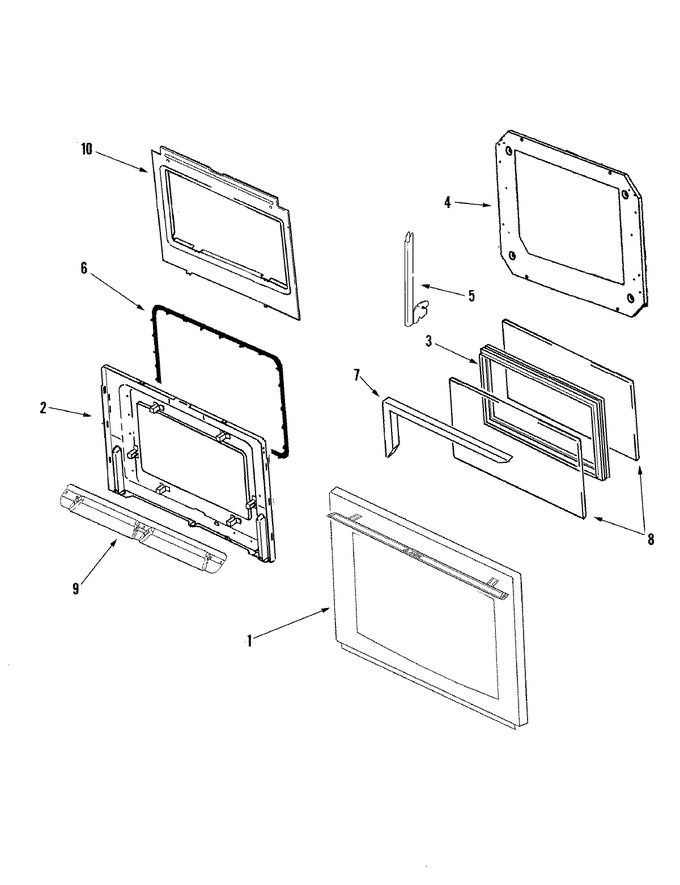

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel/internal Controls
03 - Door
04 - Oven
05 - Supplemental Information
06 - Wiring Information
07 - Wiring Information (frc)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010515 | Door Assy. (jade 30``) | 10 |
|
- | ||||
| 2 | 74010483 | Liner, Oven Door | 10 |
|
- | ||||
| 2 | 74011319 | Liner, Oven Door Asy. | 14 |
|
- | ||||
| 3 | 74003644 | Frame, Glass | 10 |
|
- | ||||
| 4 | 74011321 | Retainer, Insulation | 14 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 74008414 | Retainer, Insulation | 10 |
|
- | ||||
| 5 | WP74010283 | Hinge, Door (Replaces: 74010283) | 11 |
|
Immediately | $ 97.29 | |||
| 5 | 74008415 | Hinge, Door | 10 |
|
- | ||||
| 6 | WPW10162386 | Seal, Door (Replaces: 74008416) | 10 |
|
Immediately | $ 126.18 | |||
| 7 | 74003647 | Insulation, Oven Door | 10 |
|
- | ||||
| 7 | 74011320 | Insulation, Oven Door | 14 |
|
- | ||||
| 8 | 74003645 | Glass, Inner | 10 |
|
Immediately | $ 162.53 | |||
| 9 | W11233072 | Screw (Replaces: 74009538) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74008392 | Trim, Bottom Door Vent (blk) | 10 |
|
- | ||||
| 10 | 74009502 | Baffle, Oven Door | 10 |
|
- |
