02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
06 - Ice Maker Installation Parts
07 - Ice Maker Parts
SELECT A DIAGRAM
New Model Search:

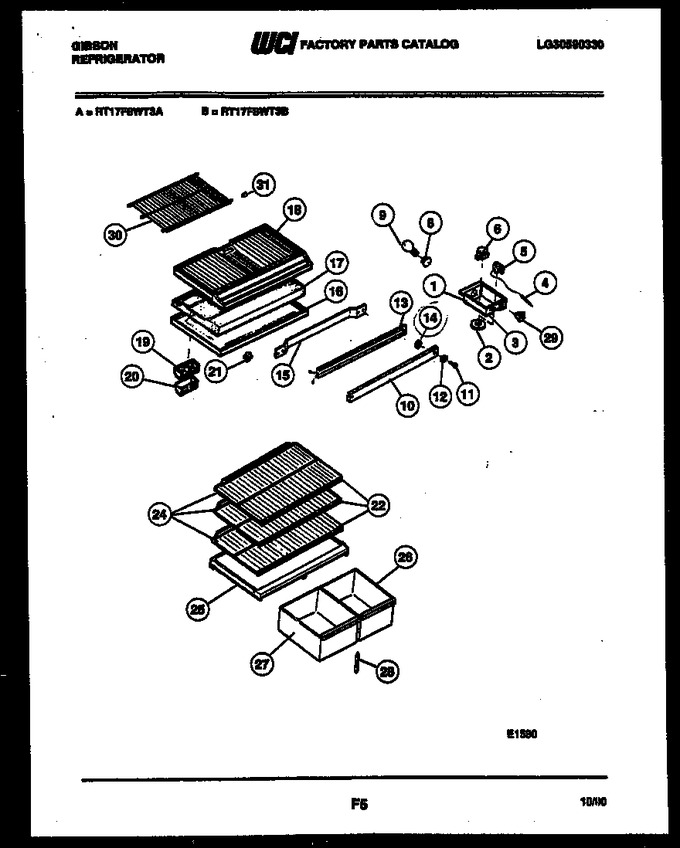

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5317672203 | Control Box |
|
- | |||||
| 2 | 5308010011 | Knob-temp Control |
|
- | |||||
| 3 | G188379-01 | Label-control Box |
|
- | |||||
| 4 | 5308037932 | Sleeve, Plastic |
|
- | |||||
| 5 | 5303200810 | Control-temperature |
|
$ 126.87 | |||||
| 6 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 8 | 5308000129 | Light Socket |
|
$ 62.16 | |||||
| 9 | 5303001179 | Light Bulb |
|
- | |||||
| 10 | 3916135 | Mullion-avocado |
|
- | |||||
| 10 | 5303200465 | Mullion, White |
|
- | |||||
| 10 | 5303916134 | Mullion, Almond |
|
- | |||||
| 10 | 3916133 | Mullion, Coffee |
|
- | |||||
| 10 | 3916132 | Mullion, Wheat |
|
- | |||||
| 11 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 12 | 5308003607 | Washer, No. 10 Steel (2) |
|
$ 1.00 | |||||
| 13 | 5308017408 | Heater-mullion |
|
- | |||||
| 14 | 5308010007 | Spacer-mullion (2) |
|
- | |||||
| 15 | 5308003604 | Strap, Mullion Mtg |
|
- | |||||
| 16 | 5303016378 | Top Panel-refr |
|
- | |||||
| 17 | 5308009750 | Divider, Styrofoam |
|
- | |||||
| 18 | 5303001537 | Bottom Panel-frzr |
|
- | |||||
| 19 | 5308000071 | Air Deflector |
|
- | |||||
| 20 | 5303001546 | Cover, Deflector |
|
- | |||||
| 21 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 22 | 5317241002 | Trim - Shelf (3) |
|
- | |||||
| 24 | G181153-05 | Shelf-refr (3) |
|
- | |||||
| 25 | 5349001601 | Cover-pan |
|
- | |||||
| 26 | G490015-38 | Pan-crisper-rh |
|
- | |||||
| 27 | G490015-39 | Pan-crisper-lh |
|
- | |||||
| 28 | 5303205987 | Support-pan Cover Adj |
|
$ 48.41 | |||||
| 29 | 5303001670 | Slide-switch-energy Saver |
|
- | |||||
| 30 | G184572-03 | Shelf-freezer |
|
- | |||||
| 31 | 3201150 | Cap Protector (2) |
|
$ 4.57 | |||||
| 16A | 5303001380 | Screw |
|
- | |||||
| 17A | 3001383 | Wiring Harness, Divider (non-illustrated) |
|
- | |||||
| 1A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 30A | 5303001601 | Grommet-frzr Shelf Mtg-rh (2) (non-illustrated) |
|
- | |||||
| 30B | 5304500407 | Grommet-frzr Shelf Mtg-lh (2) (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 5A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 6A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
