02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
06 - Ice Maker Installation Parts
07 - Ice Maker Parts
SELECT A DIAGRAM
New Model Search:

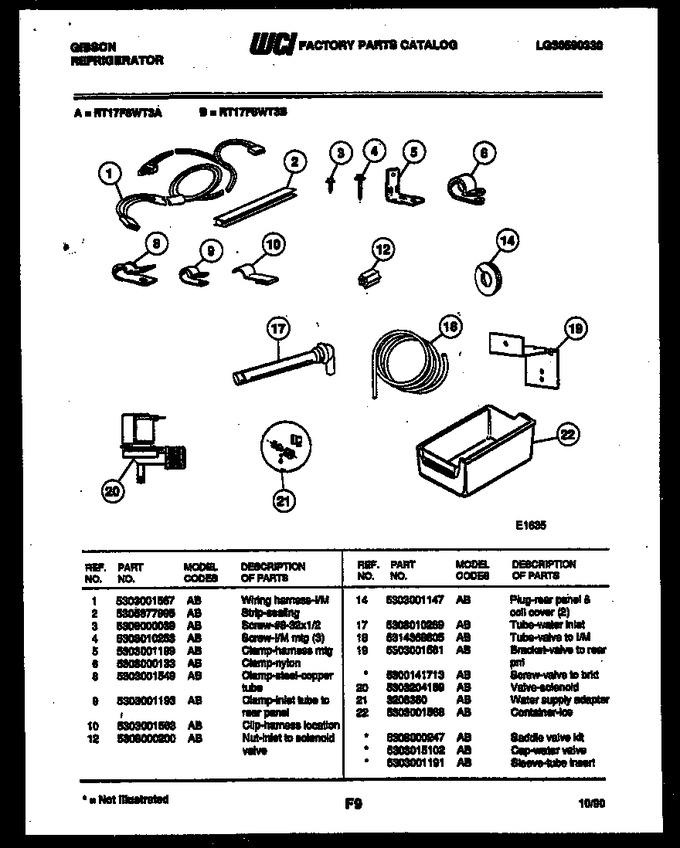

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001567 | Wiring Harness-i/m |
|
- | |||||
| 2 | 5305877995 | Strip-sealing |
|
Immediately | $ 55.29 | ||||
| 3 | 5308000039 | Screw |
|
- | |||||
| 4 | 5308010253 | Screw-im Mtg (3) |
|
- | |||||
| 5 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 6 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 8 | 5304455846 | Clamp-steel-copper Tube (Replaces: 5303001549) |
|
$ 10.63 | |||||
| 9 | 5303001193 | Clamp-inlet Tube To Rear Panel |
|
$ 16.30 | |||||
| 10 | 5303001563 | Clip-harness Location |
|
- | |||||
| 12 | 5308000200 | Nut-inlet To Solenoid Valve |
|
- | |||||
| 14 | 5303001147 | Plug - Rear Panel & Coil Cover (2) |
|
$ 22.30 | |||||
| 17 | 5308010269 | Tube-water Inlet |
|
- | |||||
| 18 | 5314368805 | Tube - Valve To I/m |
|
- | |||||
| 19 | 5303001561 | Bracket-valve To Rear Pnl |
|
- | |||||
| 20 | 5303204159 | Valve Solenoid |
|
- | |||||
| 21 | 3206360 | Water Supply Adapter |
|
$ 94.66 | |||||
| 22 | 5303001568 | Container-ice |
|
- | |||||
| *28907 | 5303015102 | Cap-water Valve |
|
- | |||||
| *28907 | 65801LF | Saddle-valve Kit (Replaces: 5308000247) |
|
Immediately | $ 8.27 | ||||
| *28908 | 5303001191 | Sleeve-tube Insert |
|
$ 6.72 | |||||
| 19A | 5300141713 | Screw-valve To Brkt (non-illustrated) |
|
- |
