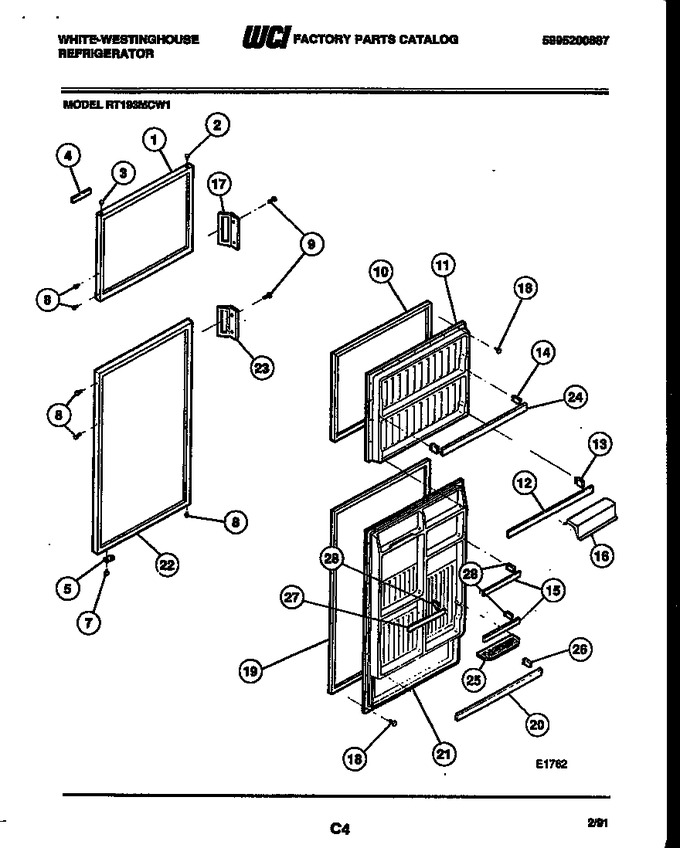

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3916581		Panel-freezer, Coffee		Appelez-nous	-
2	5303001657		Plug Button - Coffee (2)		Appelez-nous	-
3	5308012007		Bearing, Hinge (8)		Appelez-nous	-
4	3206159		Nameplate Assy		Appelez-nous	-
5	5303212491		Door Stop, Refr		Appelez-nous	-
7	5308011745		Screw				$ 10.38
8	5308000178		Plug Button-coffee (3)		Appelez-nous	-
9	5308011745		Screw				$ 10.38
10	5303018791		Gasket-freezer				$ 130.56
11	3206284		Panel-freezer Inner		Appelez-nous	-
12	3206289		Rack-freezer-lower		Appelez-nous	-
13	3206161		Support-rack Rh		Appelez-nous	-
14	3206165		Support-rack Rh			Immediately	$ 8.19
15	3206191		Rack-refr (2)		Appelez-nous	-
16	3206304		Door-dairy (includes Trim)		Appelez-nous	-
17	3206158		Handle-freezer		Appelez-nous	-
18	08002748		Screw		Appelez-nous	-
19	5303018792		Gasket-refrigerator		Appelez-nous	-
20	3206289		Rack-refrigerator		Appelez-nous	-
21	3206357		Panel-refrigerator Inner		Appelez-nous	-
22	3916586		Panel-refrigerator-coffee		Appelez-nous	-
23	3206148		Handle-ref		Appelez-nous	-
24	3206288		Rack-frzr-upper		Appelez-nous	-
25	3206189		Shelf - Flip-up				$ 50.61
26	5303206516		Support - Rack - Rh		Appelez-nous	-
27	3206300		Rack-refr		Appelez-nous	-
28	3206165		Support - Rack - Rh (3)			Immediately	$ 8.19
*41884	5303206754		Washer-no. 10 Steel-7/32 X 7/16 Od (4)		Appelez-nous	-
*41884	5303007739		Insulation - Fiberglass - Bulk		Appelez-nous	-
*41884	3206307		Bottle Retainer		Appelez-nous	-
13A	3206162		Support-rack-lh		Appelez-nous	-
14A	3206166		Support-rack Lh			Immediately	$ 9.93
1A	3206362		Label - Fan Cover (non-illustrated)		Appelez-nous	-
26A	5303206517		Support - Rack - Lh				$ 56.33
28A	3206166		Support - Rack - Lh (3)			Immediately	$ 9.93
5A	5308000255		Door Stop-freezer				$ 42.20
