02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

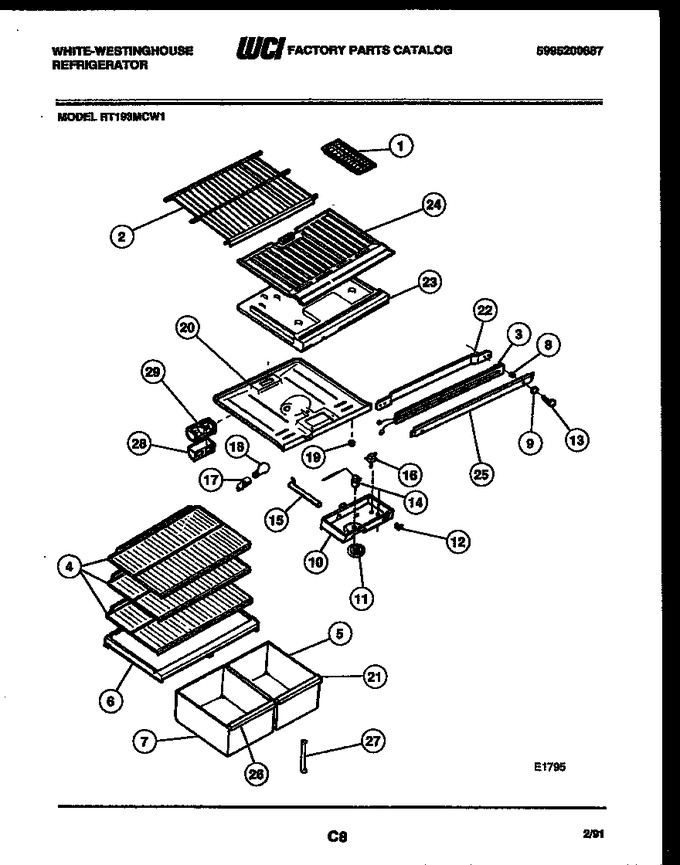

| 1 | 5303001324 | Ice Tray (2) |
|
- | |||||
| 2 | G184193-02 | Shelf-freezer |
|
- | |||||
| 3 | 5303210351 | Heater-mullion |
|
- | |||||
| 4 | 5317851102 | Shelf-refrigerator (3) |
|
- | |||||
| 5 | 3206316 | Pan-crisper-rh |
|
- | |||||
| 6 | 5308010006 | Cover-crisper |
|
- | |||||
| 7 | 3206311 | Pan - Crisper - Lh |
|
- | |||||
| 8 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 9 | 5303206754 | Washer-no. 10 Steel (2) |
|
- | |||||
| 10 | 3206130 | Control Box |
|
- | |||||
| 11 | 5303201777 | Knob - Temperature Control |
|
- | |||||
| 12 | 3206129 | Switch-energy Saver |
|
- | |||||
| 13 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 14 | 5303018894 | Control-temperature |
|
- | |||||
| 15 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 16 | 5303007400 | Timer-defrost |
|
- | |||||
| 17 | 218906802 | Light Socket (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 18 | 5303001179 | Light Bulb |
|
- | |||||
| 19 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 20 | 3018993 | Top - Refrigerator |
|
- | |||||
| 21 | 3201409 | Trim-crisper Pan-rh |
|
- | |||||
| 22 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 23 | 3018994 | Divider - Styrofoam |
|
- | |||||
| 24 | 5303211427 | Bottom - Freezer |
|
- | |||||
| 25 | 5303200369 | Mullion - Coffee |
|
- | |||||
| 26 | 3201411 | Trim-crisper Pan-lh |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cover Adj |
|
$ 48.41 | |||||
| 28 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 29 | 5308014667 | Deflector, Air |
|
- | |||||
| *41899 | 5303001449 | Seal-air Deflector (2) |
|
$ 2.12 | |||||
| 10A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 14A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 16A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 20A | 5303001380 | Screw |
|
- | |||||
| 23A | 3018900 | Wiring Harness - Divider (non-illustrated) |
|
- | |||||
| 23B | 3205266 | Protector-edge (2) (non-illustrated) |
|
$ 80.09 | |||||
| 28A | 5303200590 | Extension-w/ Insulation (non-illustrated) |
|
- | |||||
| 2A | 3201150 | Cap-protector (2) (non-illustrated) |
|
$ 4.57 | |||||
| 2B | 5304509705 | Grommet-shelf Mtg-rh (4) (non-illustrated) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 2C | 5304500407 | Grommet-shelf Mtg-lh (4) (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 |
