Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74010539 Glass Touch Assembly (27``) 10 Appelez-nous -
2 W11233072 Screw (no.8ab)   (Replaces: 71001183) 10 In-Stock Immediately $ 12.62

2 74010509 Control (single) 10 Appelez-nous -
2 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

3 74008509 Trim, Control (pro) 10 Appelez-nous -
4 74010408 Support, Top Control 10 Appelez-nous -
5 74010533 Panel, Control Assembly (27``) 10 Appelez-nous -
6 74008359 Side Panel, Control (lt) 10 Appelez-nous -
6 74008360 Side Panel, Control (rt) 10 Appelez-nous -
6 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

6 WPY706189 Screw   (Replaces: Y706189) 10 In-Stock Immediately $ 6.47

7 WP74008383 Fan, Tangential   (Replaces: 74008383) 10 In-Stock Immediately $ 181.53

8 74001629 Spring, Door Switch 10 Special Order $ 15.03

9 WPY706189 Screw   (Replaces: Y706189) 10 In-Stock Immediately $ 6.47

9 WPW10186996 Latch, Door Assy. (w/switch)   (Replaces: 74008267) 10 In-Stock Immediately $ 330.95

10 W10187048 Panel, Control Support (rear)   (Replaces: 74010407) 10 Appelez-nous -
10 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

11 74005456 Transformer, Stepdown (12v) 10 Appelez-nous -
11 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

12 5700P829-60 Cable Assembly   (Replaces: 74004735) 10 Special Order $ 342.20

12 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

12 WP71001171 Screw, Ground   (Replaces: 71001171) 10 Special Order $ 6.26

12 WP7103P027-60 Nut, Terminal Block   (Replaces: 7103P027-60) 10 In-Stock Immediately $ 6.47

13 WP7103P027-60 Nut, Terminal Block   (Replaces: 7103P027-60) 10 In-Stock Immediately $ 6.47

13 WPW10281322 Kit, Hardware Adapter   (Replaces: 74008298) 10 Special Order $ 7.61

13 WPW10245259 Block, Terminal   (Replaces: 7401P039-60) 10 In-Stock Immediately $ 31.65

14 74010514 Bracket Conduit 10 Appelez-nous -
15 74008343 Bracket, Cooling Fan 10 Appelez-nous -
15 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

16 7101P330-60 Screw, Switch 10 Appelez-nous -
16 74008264 Insulator 10 Appelez-nous -
16 WP74008263 Switch, Door Lock   (Replaces: 74008263) 10 Special Order $ 147.27

17 74001632 Bracket, Switch Actuator 10 Appelez-nous -
18 74003562 Rod, Door Light Switch 10 Appelez-nous -
19 74011317 Bumper, Door Light 10 Appelez-nous -
20 74010510 Bracket, Lower Relay 10 Appelez-nous -
20 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

21 WP90767 Screw   (Replaces: Y700502) 10 In-Stock Immediately $ 7.04

21 W11233072 Screw (no.8ab)   (Replaces: 71001183) 10 In-Stock Immediately $ 12.62

21 74010511 Bracket, Relay Upper 10 Appelez-nous -
22 74010491 Knob, Control 10 Appelez-nous -
23 74010492 Bezel, Knob 10 Appelez-nous -
24 74008488 Encoder, Rotary Bit 10 Special Order $ 63.25

24 Y704977 Nut, 5/8`` Hex 10 Appelez-nous -
25 74010500 Retainer, Control Glass 10 Appelez-nous -
26 WP8566493 Relay, Convect (jade)   (Replaces: 74010517) 10 Special Order $ 81.32


    View Diagram in Separate Window     Print Icon   Print Part List

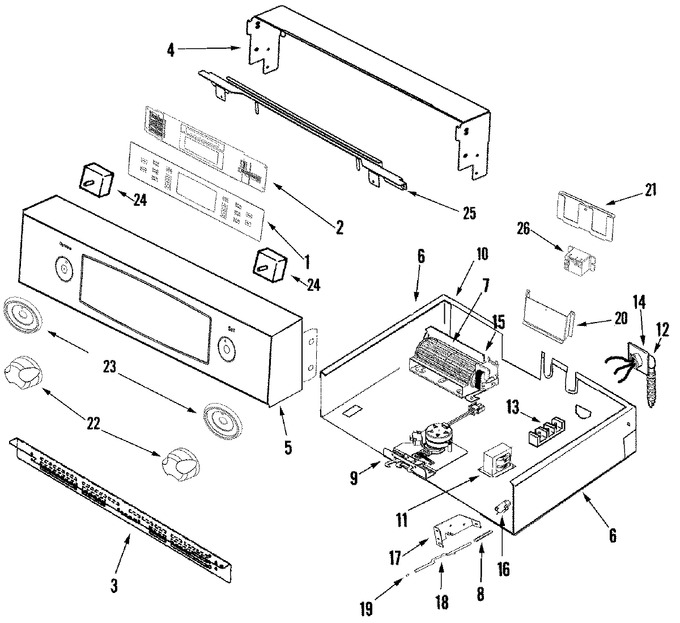

Diagram for RJSO2701A
