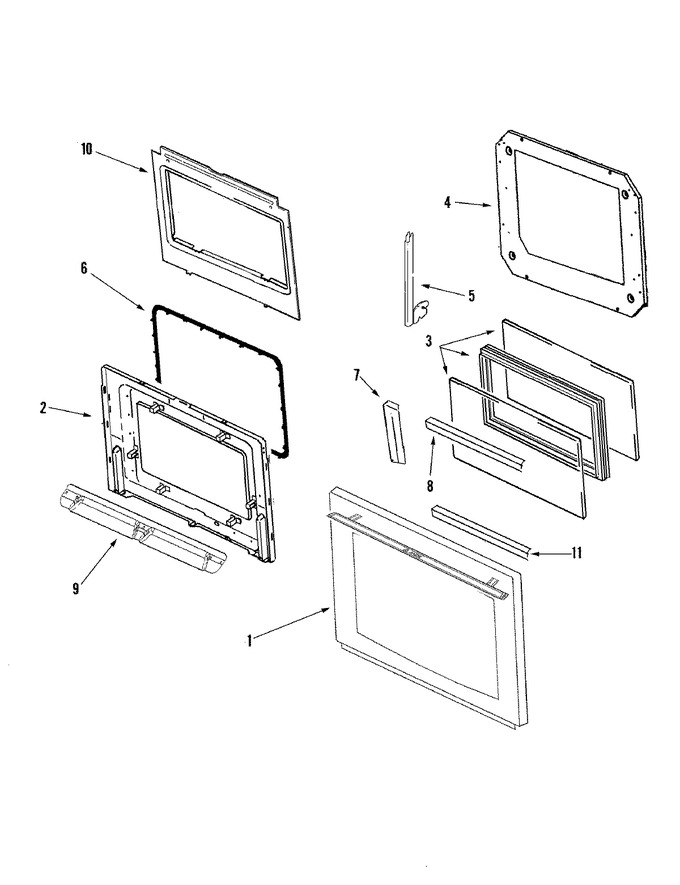

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010516 | Door Assy. (jade 27``) | 10 |
|
- | ||||
| 2 | 74010531 | Liner, Oven Door (jade) | 10 |
|
- | ||||
| 3 | WP7902P444-60 | Glass, Window Pak (27``) (Replaces: 74009942) | 10 |
|
$ 147.26 | ||||
| 4 | 74005638 | Retainer, Insulation | 10 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 5 | 74008384 | Hinge, Door | 10 |
|
- | ||||
| 5 | WP74010284 | Hinge, Door (Replaces: 74010284) | 11 |
|
Immediately | $ 115.11 | |||
| 6 | WP71001970 | Seal, Door (Replaces: 71001970) | 10 |
|
$ 156.50 | ||||
| 7 | 71001839 | Insulation, Door (side) | 10 |
|
- | ||||
| 8 | 74005634 | Insulation, Top | 10 |
|
- | ||||
| 9 | W11233072 | Screw (Replaces: 74009538) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74008392 | Trim, Bottom Door Vent (blk) | 10 |
|
- | ||||
| 10 | 74009502 | Baffle, Oven Door | 10 |
|
- | ||||
| 11 | 71001969 | Insulation, Door (btm) | 10 |
|
- |
