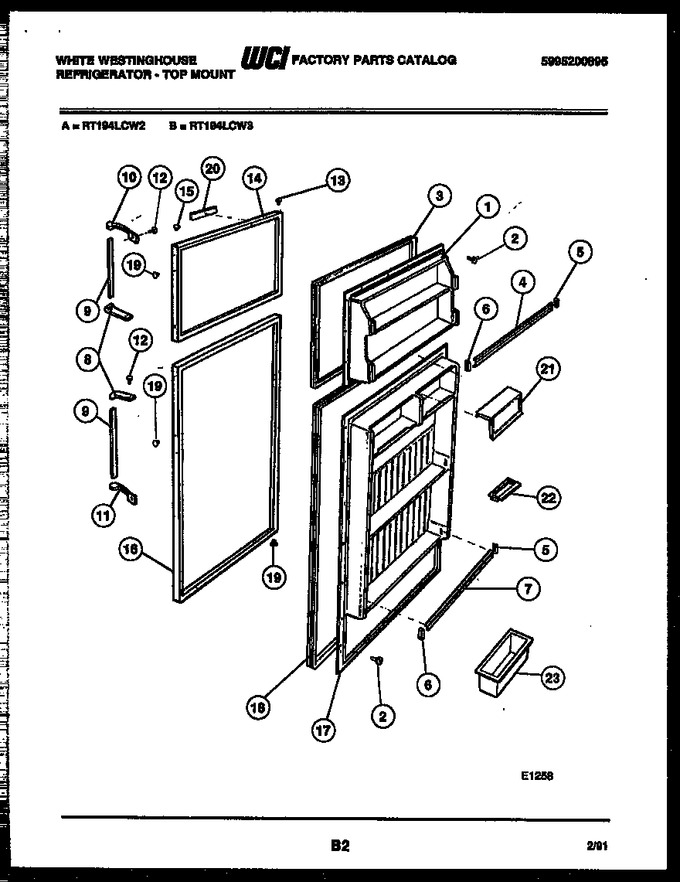

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206550 | Inner Panel-frzr |
|
- | |||||
| 2 | 08002748 | Screw |
|
- | |||||
| 3 | 5303001486 | Gasket-frzr Door |
|
- | |||||
| 4 | G161019-56 | Door Rack-frzr (2) |
|
- | |||||
| 5 | 5303007295 | Support-rh (4) |
|
$ 32.55 | |||||
| 6 | 5303007297 | Support-rh (4) |
|
$ 64.58 | |||||
| 7 | G161019-52 | Door Rack-refr (2) |
|
- | |||||
| 8 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 9 | 5317566618 | Handle Grip (2) |
|
- | |||||
| 10 | 5303001014 | Handle - End Top |
|
- | |||||
| 11 | 5303001015 | Handle - End Bottom |
|
$ 74.29 | |||||
| 12 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 13 | 5308000176 | Plug-wheat (2) |
|
- | |||||
| 14 | R002001044 | Frzr Door-wheat |
|
- | |||||
| 15 | 5308012007 | Hinge Bearing (8) |
|
- | |||||
| 16 | R002001051 | Refr Door-wheat |
|
- | |||||
| 17 | 5303206569 | Inner Panel-refr |
|
- | |||||
| 18 | 5308015544 | Gasket-refr Door |
|
- | |||||
| 19 | 5308000180 | Plug-wheat (12) |
|
- | |||||
| 20 | 5300304001 | Nameplate - Assy |
|
- | |||||
| 21 | G178500-09 | Dairy Door (2) |
|
- | |||||
| 22 | 5308000716 | Butter Dish |
|
$ 20.48 | |||||
| 23 | G173948-17 | Egg Container |
|
- | |||||
| *42590 | 5303007739 | Insulation-door (bulk) |
|
- | |||||
| 20A | 5315340712 | Tape-nameplate Mtg (non-illustrated) |
|
- |
