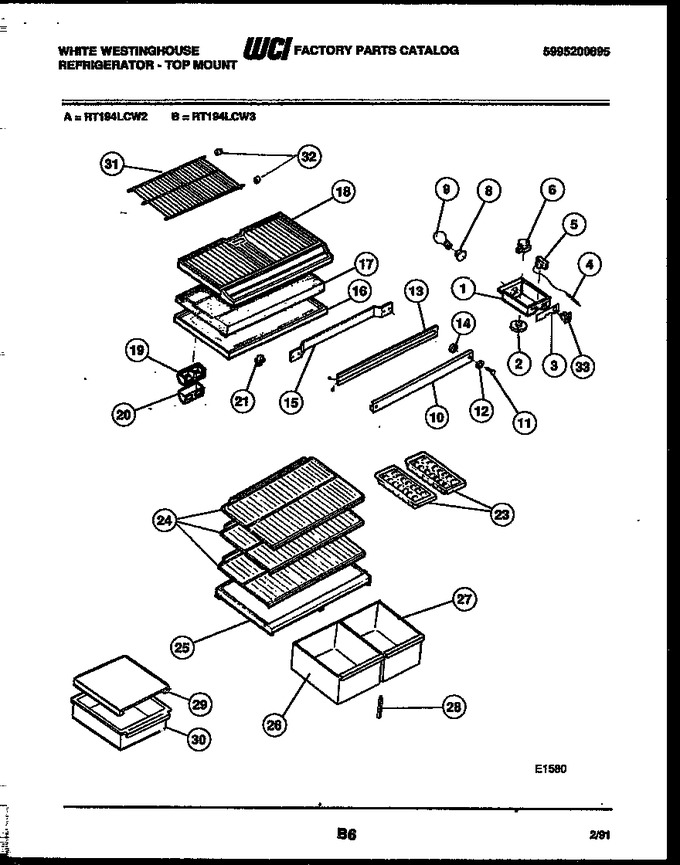

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5317672201 | Control Box |
|
- | |||||
| 2 | 5308010011 | Knob-temp Control |
|
- | |||||
| 3 | G000180105 | Label - Control Box |
|
- | |||||
| 4 | G142176-43 | Sleeve-plastic |
|
- | |||||
| 5 | 5303200810 | Control-temp |
|
$ 126.87 | |||||
| 6 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 8 | 5308000129 | Light Socket |
|
$ 62.16 | |||||
| 9 | 5303001179 | Light Bulb |
|
- | |||||
| 10 | 5303200368 | Mullion, Wheat |
|
- | |||||
| 11 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 12 | 5303206754 | Washer-no. 10 Steel (2) |
|
- | |||||
| 13 | 5303210351 | Heater-mullion |
|
- | |||||
| 14 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 15 | 5308010008 | Strap-mullion Mtg |
|
- | |||||
| 16 | 5303016367 | Top Panel-refr, W/snap Bushing |
|
- | |||||
| 17 | 5303001504 | Divider, Styrofoam |
|
- | |||||
| 18 | 5303211427 | Bottom Panel-frzr |
|
- | |||||
| 19 | 5308000071 | Air Deflector |
|
- | |||||
| 20 | 5303001546 | Cover, Deflector |
|
- | |||||
| 21 | 5309918806 | Light Switch |
|
Immediately | $ 21.97 | ||||
| 23 | 5303001324 | Ice Cube Tray (2) |
|
- | |||||
| 24 | 5317851102 | Shelf-refr (3) |
|
- | |||||
| 25 | 5308010006 | Cover-pan |
|
- | |||||
| 26 | 5349001501 | Pan Storage-lh |
|
- | |||||
| 27 | G176639-22 | Pan Storage-rh |
|
- | |||||
| 28 | 5303205987 | Support-pan Cover Adj |
|
$ 48.41 | |||||
| 29 | 5303200492 | Cover-meat Pan |
|
- | |||||
| 30 | G176918-22 | Pan-meat |
|
- | |||||
| 31 | G184193-02 | Shelf-freezer |
|
- | |||||
| 32 | 3201150 | Cap-shelf Freezer |
|
$ 4.57 | |||||
| 33 | 5303001670 | Switch-slide |
|
- | |||||
| 16A | 5303212518 | Snap Bushing (non-illustrated) |
|
- | |||||
| 16B | 5303001380 | Screw |
|
- | |||||
| 17A | 3001383 | Wiring Harness, Divider (non-illustrated) |
|
- | |||||
| 1A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 31A | 5304509705 | Grommet-shelf Mtg-rh (4) (non-illustrated) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 31B | 5304500407 | Grommet-shelf Mtg-lh (4) (non-illustrated) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 5A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 6A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
