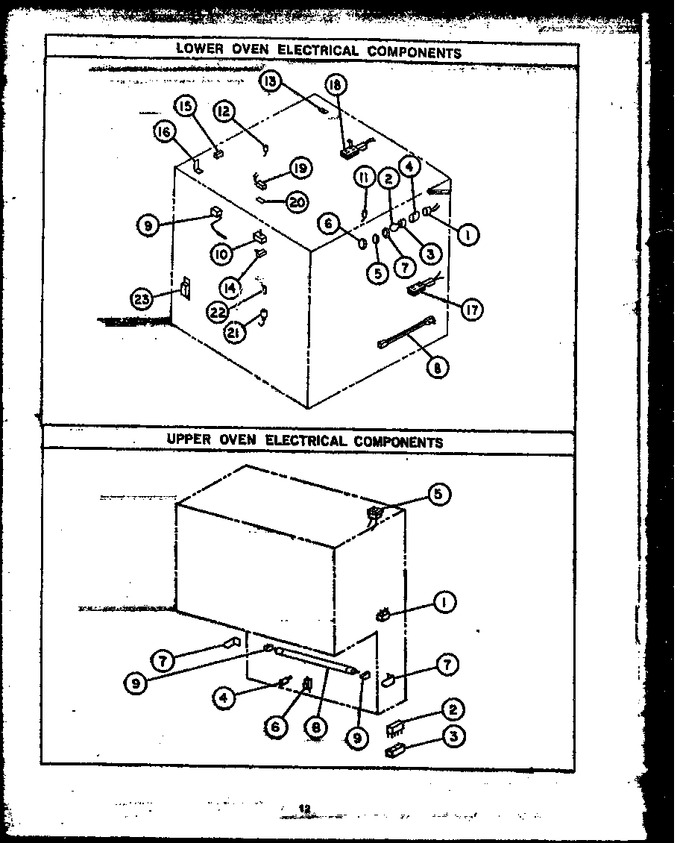

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0063916 | Conn Housing |
|
- | |||||
| 1 | Y0062365 | Socket, Oven Light |
|
- | |||||
| 2 | Y0066597 | Plug, 12 Pin Male |
|
- | |||||
| 2 | Y0042175 | Bulb, Light |
|
- | |||||
| 3 | 0062081 | Housing, Ovenlite |
|
- | |||||
| 3 | Y0066299 | Connector |
|
- | |||||
| 4 | 0062366 | Retainer, Insul Ov. Lite |
|
- | |||||
| 4 | 0071920 | Starter, Flourescent |
|
- | |||||
| 5 | 0073027 | Receptacle |
|
- | |||||
| 5 | Y0064875 | Lens, Oven Light |
|
- | |||||
| 6 | 0071964 | Socket, Starter |
|
- | |||||
| 6 | 0063764 | Retainer, Oven Light Lens |
|
- | |||||
| 7 | Y0071265 | Bracket, Socket, Fl. Lite |
|
- | |||||
| 7 | 0063763 | Gasket, Oven Light |
|
- | |||||
| 8 | WP95292 | Lamp, Fluorescent (Replaces: Y0071927) |
|
Immediately | $ 121.45 | ||||
| 8 | 0068751 | Supply Cord |
|
- | |||||
| 9 | Y0061503 | Thermostat, Oven |
|
- | |||||
| 9 | Y0071924 | Light Socket |
|
- | |||||
| 10 | Y0061636 | Selector Switch |
|
- | |||||
| 11 | Y0068866 | Sub 59117, Electrode Assy., 30 |
|
- | |||||
| 12 | Y0068867 | Electrode 29`` |
|
- | |||||
| 13 | WPY0070927 | Mounting Clip (Replaces: Y0070927) |
|
$ 6.85 | |||||
| 14 | Y0067335 | Switch, Top Brnr Actuator |
|
- | |||||
| 15 | Y0066564 | Spark Module |
|
- | |||||
| 16 | Y0065458 | Bracket, Spark Module Mtg. |
|
- | |||||
| 17 | 786324 | Kit, Ignitor-bake/broil (Replaces: Y0087699) |
|
Immediately | $ 60.68 | ||||
| 18 | 786324 | Kit, Ignitor-bake/broil (Replaces: Y0087699) |
|
Immediately | $ 60.68 | ||||
| 19 | Y0065780 | Switch, Clean Circuit |
|
$ 11.77 | |||||
| 20 | Y0091523 | Insulation, Esm |
|
- | |||||
| 21 | Y0070405 | Fuseholder |
|
- | |||||
| 22 | Y0072211 | Fuse, 5 Amp |
|
$ 22.83 | |||||
| 23 | Y0071869 | Ballast |
|
- | |||||
| NI | W10124418 | Line Cord,vent Hood |
|
- |
