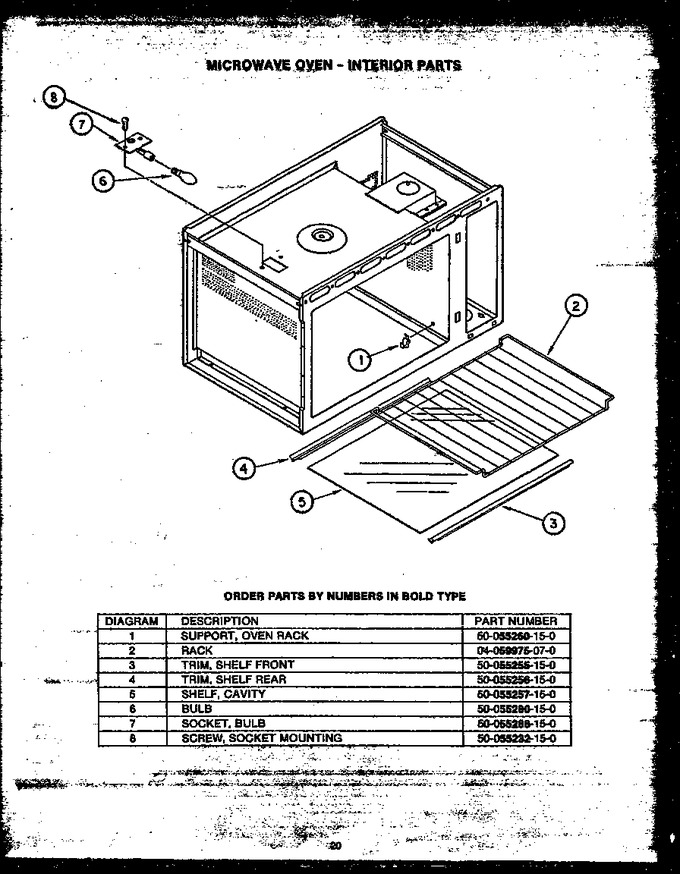

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0055260		Support, Rack		Appelez-nous	-
2	0059975		Shelf, Microwave		Appelez-nous	-
3	0055255		Trim, Shelf Front		Appelez-nous	-
4	0055256		Trim, Shelf Rear		Appelez-nous	-
5	0055257		Shelf, Cavity		Appelez-nous	-
6	Y0055280		M9d107 Lamp		Appelez-nous	-
7	0055288		Socket, Light Plt. Assy.		Appelez-nous	-
8	0055232		Screw		Appelez-nous	-
