SELECT A DIAGRAM

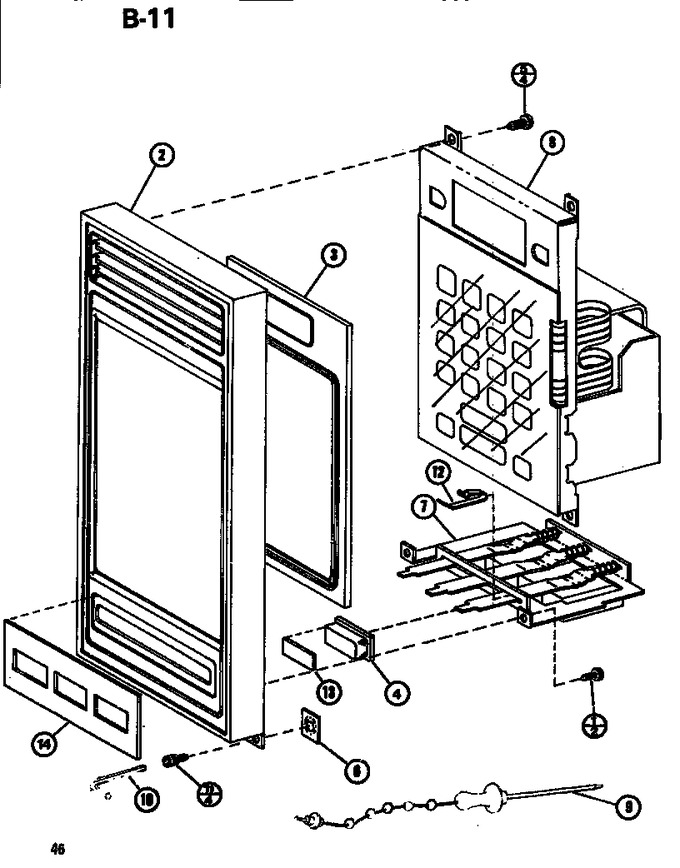

01 - Control Panel
02 - Exterior
03 - Interior
04 - Interior
05 - Interior
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11084238 | Screw (Replaces: M0234001) |
|
- | |||||
| 2 | D7548906 | Escutcheon Pntd |
|
- | |||||
| 3 | C8872705 | Lens Esut. |
|
- | |||||
| 4 | C8840802 | Button- Push |
|
- | |||||
| 5 | M0234016 | Screw |
|
- | |||||
| 6 | M0288701 | Speed Nut ``u`` Type- Nameplate |
|
- | |||||
| 7 | D7546303 | Switch Assembly |
|
- | |||||
| 8 | R0163082 | Net-module Rr5-10 |
|
- | |||||
| 9 | C8821503 | Temp Probe |
|
- | |||||
| 10 | A4696103 | Wrench-hex |
|
- | |||||
| 11 | M0229916 | Screw T.c |
|
- | |||||
| 12 | A1039301 | Spring |
|
- | |||||
| 13 | A1004803 | Insert-light |
|
- | |||||
| 13 | A1004801 | Insert-start |
|
- | |||||
| 13 | A1004802 | Insert-stop |
|
- | |||||
| 14 | B8348101 | Thinplate, Sw |
|
- |
