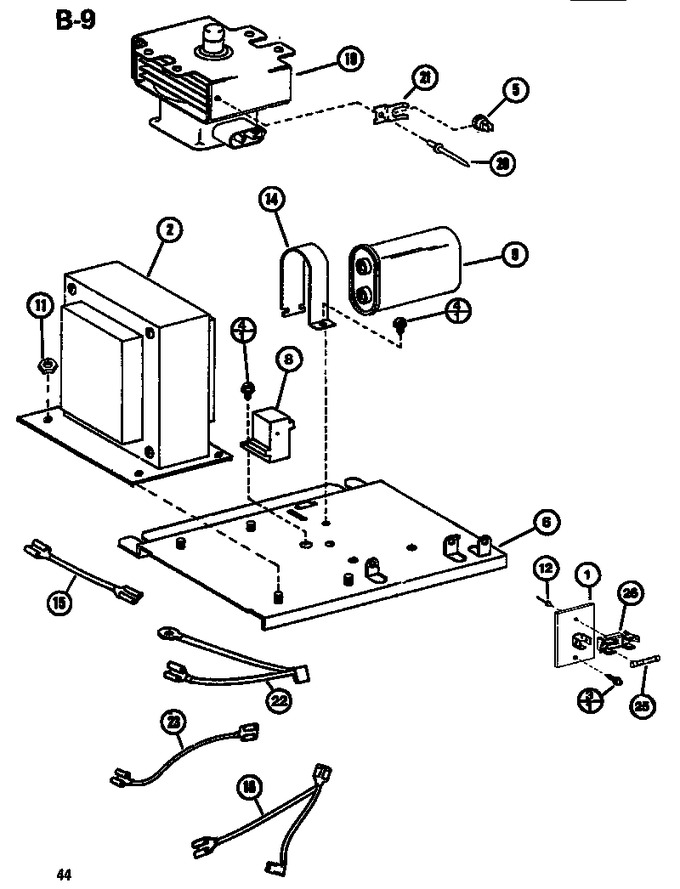

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B8359501 | Terminal Board |
|
- | |||||
| 2 | D7423003 | Transformer |
|
- | |||||
| 3 | M0251002 | Screw |
|
- | |||||
| 4 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 5 | B5665810 | Thermal Cut Out |
|
- | |||||
| 6 | D7422901 | Transfomer Weld |
|
- | |||||
| 8 | B5767804 | Kit, Diode |
|
- | |||||
| 9 | D8547904 | Capacitor |
|
- | |||||
| 11 | WP487939 | Nut (Replaces: M0282015) |
|
$ 6.95 | |||||
| 12 | A4539602 | Pop Rivet |
|
- | |||||
| 14 | A3257003 | Strap-capacitor |
|
- | |||||
| 15 | D7365111 | Jumper Wire |
|
- | |||||
| 16 | D7365104 | Jumper Wire |
|
- | |||||
| 19 | C8761711 | Magnetron |
|
- | |||||
| 20 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 21 | B5725102 | Clip |
|
- | |||||
| 22 | D7292651 | Jumper Wire |
|
- | |||||
| 23 | D7292647 | Jumper Wire |
|
- | |||||
| 25 | M0805103 | Fuse, 10 Amp |
|
- | |||||
| 26 | B8351101 | Fuse Blk .250 Term, 40 Deg Tab |
|
- |
