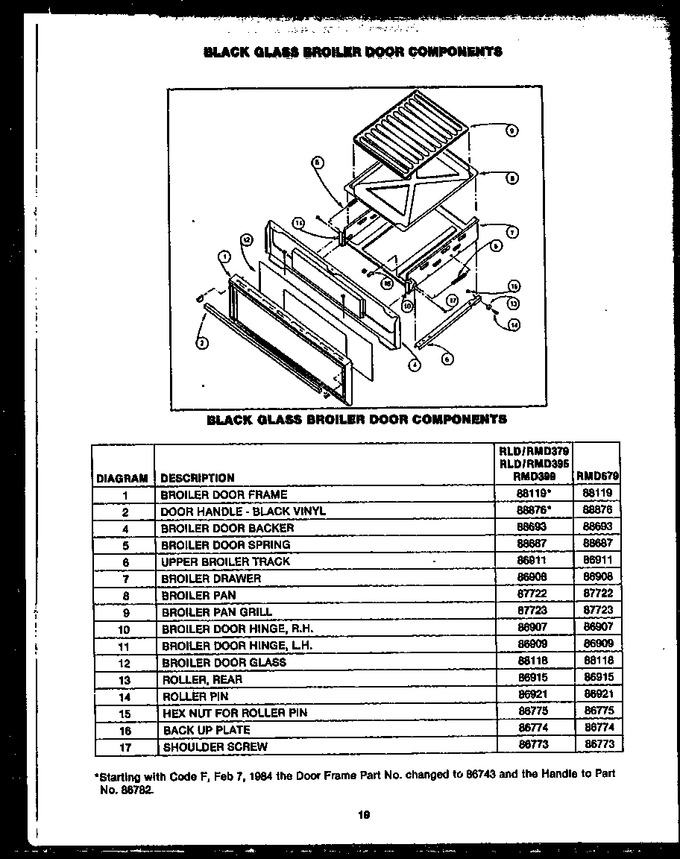

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0088119 | Frame, Broiler Door Glass |
|
- | |||||
| 2 | 0088876 | Handle, Door |
|
- | |||||
| 4 | 0088693 | Sub 88693cg, Broiler Door Back |
|
- | |||||
| 5 | Y0088687 | Spring, Broiler Door |
|
- | |||||
| 6 | Y0086911 | Track, Upper |
|
- | |||||
| 7 | Y0086908 | Sub 86908cg Drawer, Broiler |
|
- | |||||
| 8 | 4396923 | Sub 87722cg, Pan, Broiler (Replaces: Y0087722) |
|
Immediately | $ 52.04 | ||||
| 9 | 4396923 | Broiler, Grid (Replaces: Y0087723) |
|
Immediately | $ 52.04 | ||||
| 10 | 0086907 | Hinge, Broiler Door Rh (j) |
|
- | |||||
| 11 | Y0086909 | Hinge, Broiler Door Lh (j) |
|
- | |||||
| 12 | 0088118 | Glass, Broiler Door |
|
- | |||||
| 13 | Y0086915 | Roller, Rear Upper |
|
- | |||||
| 14 | 0086921 | Pin, Rear Upper |
|
- | |||||
| 15 | M0282009 | Nut (Replaces: Y0086775) |
|
$ 12.06 | |||||
| 16 | Y0086774 | Plate, Broiler Hinge {j} |
|
- | |||||
| 17 | Y0086773 | Screw, Shoulder (j) |
|
- |
