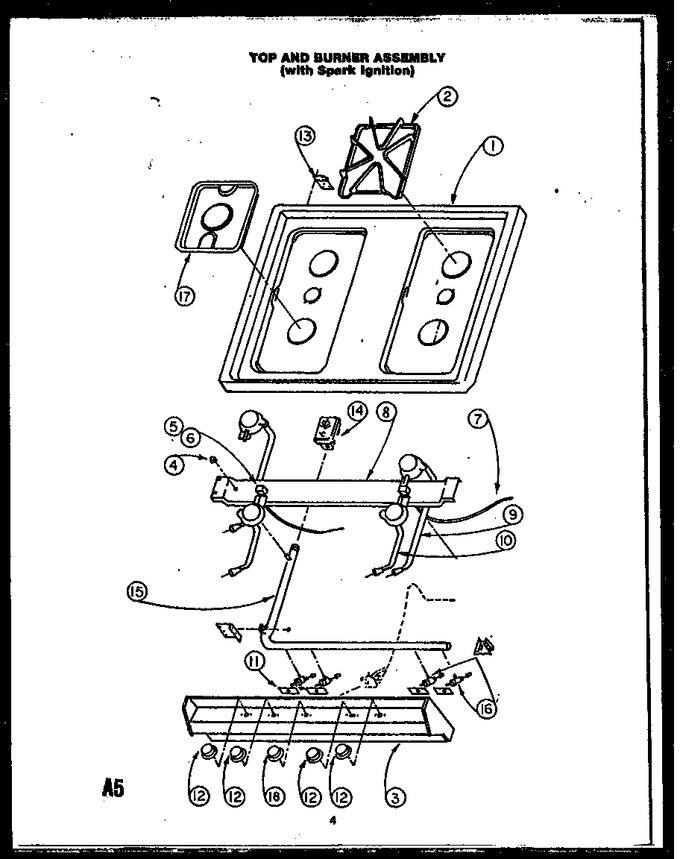

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	86960A		Main Top Avocado		Appelez-nous	-
1	86960C		Main Top Coffee		Appelez-nous	-
1	086960H		Main Top, Gold		Appelez-nous	-
1	086960W		Cooktop, White		Appelez-nous	-
1	Y086960L		Cooktop, Almond		Appelez-nous	-
2	67909		Grate, Top Burner				$ 82.99
4	0088650		Square Nut {j}		Appelez-nous	-
6	Y0086792		Ignitor, Top Burner L.h.		Appelez-nous	-
7	Y0086793		Igniter-spk, Top Burner		Appelez-nous	-
8	0086971		Burner Support		Appelez-nous	-
9	Y0087029		Top Burner, Rear		Appelez-nous	-
10	0087028		Top Burner, Front		Appelez-nous	-
11	WP4157180		Switch, Spark Valve   (Replaces: Y0088874)				$ 102.56
12	Y0086993		Knob, Top Burner		Appelez-nous	-
13	0088782		Hinge, Main Top		Appelez-nous	-
14	Y0088783		Pressure Regulator		Appelez-nous	-
15	0086978		Manifold Round Pipe		Appelez-nous	-
16	0086990		Valve, Top Burner 180 Degrees		Appelez-nous	-
17	WP786333		Burner Bowl   (Replaces: Y63990)				$ 16.83
18	Y0086992		Knob, Thermostat		Appelez-nous	-
NI	0086976		End Cap, Rh		Appelez-nous	-
NI	Y0087020		Sub 63997, Switch, Rocker		Appelez-nous	-
NI	0086983		Trim, Main Top		Appelez-nous	-
NI	0086975		End Cap, Lh		Appelez-nous	-
