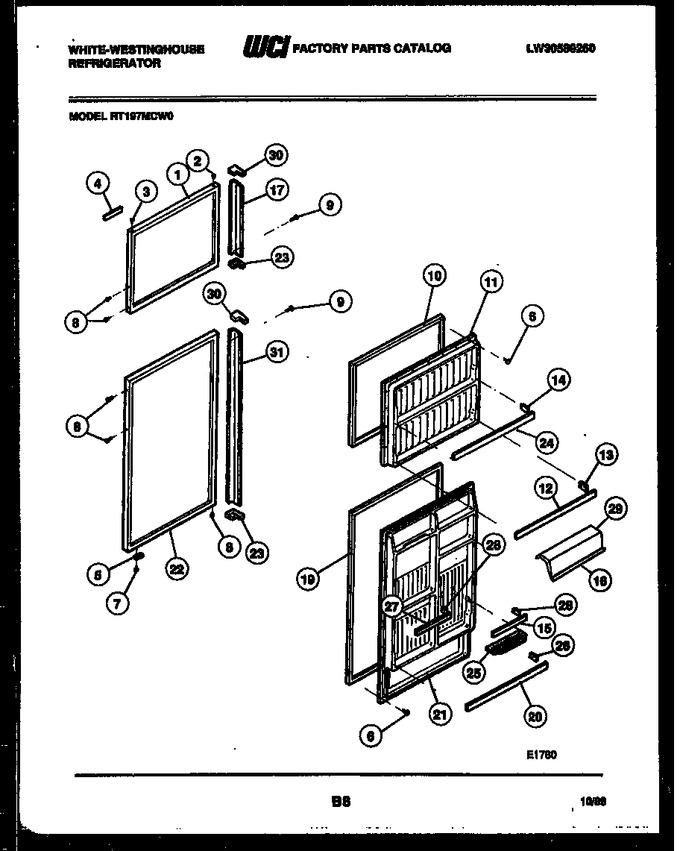

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G183468-10 | Panel-freezer-coffee |
|
- | |||||
| 2 | G169332-10 | Button-plug, Coffee |
|
- | |||||
| 3 | 08012007 | Bearing-hinge |
|
- | |||||
| 4 | 3206159 | Nameplate |
|
- | |||||
| 5 | 08000255 | Door Stop (2) |
|
- | |||||
| 6 | G162585 | Screw |
|
- | |||||
| 7 | G185566 | Screw |
|
- | |||||
| 8 | G162977-10 | Button Plug-coffee |
|
- | |||||
| 9 | G185566 | Screw |
|
- | |||||
| 10 | 3018791 | Gasket-freezer |
|
- | |||||
| 11 | 3206284 | Panel-freezer Inner |
|
- | |||||
| 12 | 3206289 | Rack-freezer |
|
- | |||||
| 13 | 3206161 | Support-rack Rh |
|
- | |||||
| 14 | 3206165 | Support-rack Rh |
|
Immediately | $ 8.19 | ||||
| 15 | 3206191 | Rack-refr (2) |
|
- | |||||
| 16 | 3206302 | Trim-dairy Door |
|
- | |||||
| 17 | 3206217 | Handle-door-frzr |
|
- | |||||
| 19 | G186803-13 | Gasket-refrigerator |
|
- | |||||
| 20 | 3206289 | Rack-refrigerator |
|
- | |||||
| 21 | 3206357 | Panel-refrigerator Inner |
|
- | |||||
| 22 | G187356-10 | Panel-refrigerator-coffee |
|
- | |||||
| 23 | G177143 | Handle End-bottom (2) |
|
- | |||||
| 24 | 3206288 | Rack-frzr |
|
- | |||||
| 25 | 3206189 | Shelf - Flip-up |
|
$ 50.61 | |||||
| 26 | 5303206516 | Support - Rack - Rh |
|
- | |||||
| 27 | 3206300 | Rack-refr |
|
- | |||||
| 28 | 3206165 | Support - Rack - Rh (3) |
|
Immediately | $ 8.19 | ||||
| 29 | 5303206519 | Dairy Door |
|
- | |||||
| 30 | G177142 | Handle End-top (2) |
|
- | |||||
| 31 | 3206418 | Handle-door-refr |
|
- | |||||
| *23414 | 5303206514 | Snugger-door Rack (2) |
|
- | |||||
| *23414 | 3206307 | Bottle Retainer |
|
- | |||||
| *23414 | 3007739 | Insulation-fiberglass (bulk) |
|
- | |||||
| 13A | 3206162 | Support-rack-lh |
|
- | |||||
| 14A | 3206166 | Support-rack Lh |
|
Immediately | $ 9.93 | ||||
| 23A | G177144 | Clip-door Handle (2) (non-illustrated) |
|
- | |||||
| 23B | G179271 | Trim-handle End-bottom (2) (non-illustrated) |
|
- | |||||
| 26A | 5303206517 | Support - Rack - Lh |
|
$ 56.33 | |||||
| 28A | 3206166 | Support - Rack - Lh (3) |
|
Immediately | $ 9.93 | ||||
| 30A | G177144 | Clip-door Handle (2) (non-illustrated) |
|
- | |||||
| 30B | G179270 | Trim-handle End-top (2) (non-illustrated) |
|
- |
