02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

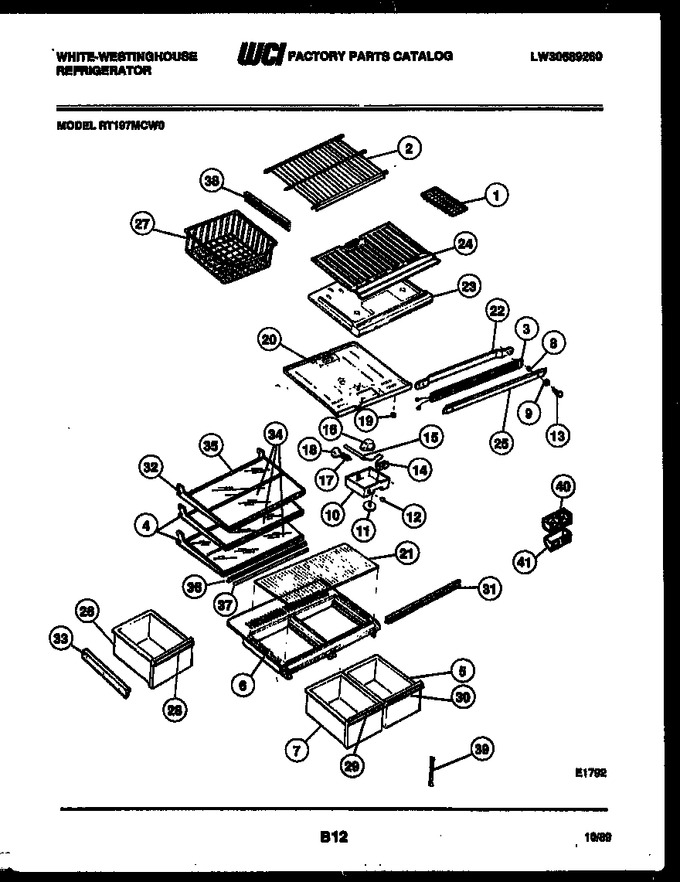

| 1 | 3001324 | Ice Tray (2) |
|
- | |||||
| 2 | 5303206608 | Shelf - Freezer |
|
- | |||||
| 3 | 3018916 | Heater-mullion |
|
- | |||||
| 4 | 3200327 | Frame, Cantilever (2) |
|
- | |||||
| 5 | 5303206534 | Pan - Crisper - Rh |
|
- | |||||
| 6 | 5303206606 | Cover - Crisper |
|
- | |||||
| 7 | 3206311 | Pan - Crisper - Lh |
|
- | |||||
| 8 | 3200464 | Spacer-mullion (2) |
|
- | |||||
| 9 | G166847 | Washer-no. 10 Steel (2) |
|
- | |||||
| 10 | 3206130 | Control Box |
|
- | |||||
| 11 | 3201777 | Knob-temperature Control |
|
- | |||||
| 12 | 3206129 | Switch-energy Saver |
|
- | |||||
| 13 | 08012258 | Screw |
|
- | |||||
| 14 | 3018894 | Control-temperature |
|
- | |||||
| 15 | 3018891 | Hsg-cont Cap Tube |
|
- | |||||
| 16 | G187484 | Timer-defrost |
|
- | |||||
| 17 | 08000815 | Light Socket |
|
- | |||||
| 18 | 3001179 | Light Bulb |
|
- | |||||
| 19 | 09918806 | Light Switch |
|
- | |||||
| 20 | 3018993 | Top - Refrigerator |
|
- | |||||
| 21 | 5303206539 | Glass-crisper Cover |
|
- | |||||
| 22 | 08010008 | Strap-mullion Mtg |
|
- | |||||
| 23 | 3018994 | Divider - Styrofoam |
|
- | |||||
| 24 | 3001505 | Bottom-freezer |
|
- | |||||
| 25 | 3200369 | Mullion-coffee |
|
- | |||||
| 26 | 5303206542 | Meat Pan |
|
- | |||||
| 27 | 5303206610 | Basket-frzr-full |
|
- | |||||
| 28 | 5303206541 | Trim - Meat Pan |
|
- | |||||
| 29 | 3206308 | Trim-crisper Pan-lh |
|
- | |||||
| 30 | 3206317 | Trim-crisper Pan-rh |
|
- | |||||
| 31 | 5303206540 | Trim - Crisper Cover |
|
- | |||||
| 32 | 3200398 | Frame-meat Keep Shelf |
|
- | |||||
| 33 | 3018889 | Hanger-meat Pan-lh |
|
- | |||||
| 34 | 5303206612 | Glass-shelf (3) |
|
- | |||||
| 35 | 5303206611 | Trim-rear Shelf Retainer (3) |
|
- | |||||
| 36 | 3200321 | Retainer-glass (2) |
|
- | |||||
| 37 | 5303206613 | Trim-shelf (3) |
|
- | |||||
| 38 | 5303206521 | Hanger-frzr Bskt-rh |
|
- | |||||
| 39 | 3205987 | Support-crisper Cover-adj |
|
- | |||||
| 40 | 3204206 | Air Deflector |
|
- | |||||
| 41 | G162178 | Cover |
|
- | |||||
| *23427 | 5303206525 | Divider-freezer |
|
- | |||||
| *23427 | 3205266 | Protector-edge (2) |
|
$ 80.09 | |||||
| *23427 | G170910 | Clip-cantilever Shelf-shipping (6) |
|
- | |||||
| *23428 | G187363 | Screw |
|
- | |||||
| *23428 | G186095-01 | Rack-ice Tray |
|
- | |||||
| *23428 | 5303206533 | Rack - Hanging - Egg |
|
- | |||||
| 10A | G187363 | Screw |
|
- | |||||
| 14A | G107080 | Screw |
|
- | |||||
| 16A | G105289 | Screw |
|
- | |||||
| 20A | G162673 | Screw-top Mtg (3) (non-illustrated) |
|
- | |||||
| 23A | 3018900 | Wiring Harness - Divider (non-illustrated) |
|
- | |||||
| 23B | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 | |||||
| 2A | 3201150 | Cap-protector (2) (non-illustrated) |
|
$ 4.57 | |||||
| 2B | 5303206609 | Trim - Shelf (non-illustrated) |
|
- | |||||
| 2C | G167565 | Grommet-rh (4) (non-illustrated) |
|
- | |||||
| 2D | G176993 | Grommet-lh (4) (non-illustrated) |
|
- | |||||
| 33A | 3018890 | Hanger-meat Pan-rh (non-illustrated) |
|
- | |||||
| 33B | 08014528 | Screw (6) (non-illustrated) |
|
$ 4.31 | |||||
| 34A | 3200901 | Rail-glass Supt (6) (non-illustrated) |
|
- | |||||
| 36A | 3200408 | Retainer-glass-meat Keeper Shelf |
|
- | |||||
| 38A | 5303206522 | Hanger-frzr Bskt-lh |
|
- | |||||
| 6A | 3200329 | Gasket-crisper Cover (non-illustrated) |
|
- |
