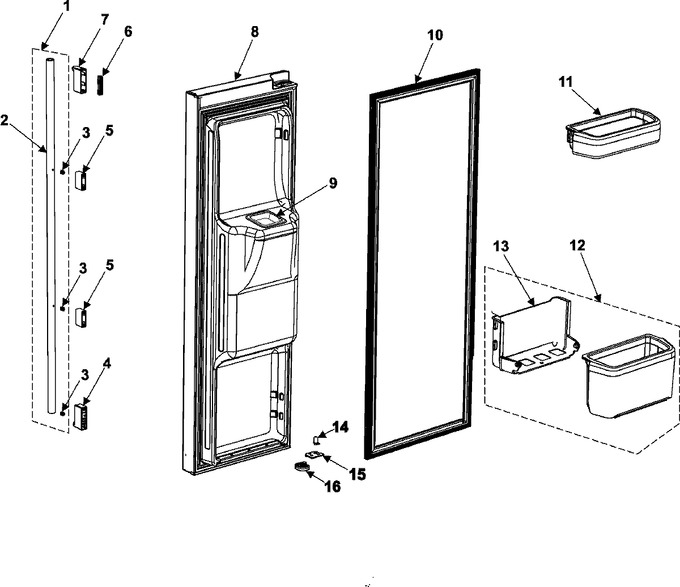

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-03123B		Assy Handle Bar,upp		Appelez-nous	-
2	DA64-01588D		Handle Bar;next,al(a6063),-,-,		Appelez-nous	-
3	555555		Grommet-fixer Handle   (Replaces: DA63-00789A)				$ 151.94
4	DA67-01267A		Cap-handle Low;in,next,abs,-,				$ 31.83
5	DA61-00264T		Support-handle Mid		Appelez-nous	-
6	555555		Base-cap Handle   (Replaces: DA61-00831A)				$ 151.94
7	DA67-00773F		Cap-handle;next		Appelez-nous	-
8	DA63-02906A		Cover-housing Door,upp;next		Appelez-nous	-
8	DA91-02102B		Assy Door Foam Fre;next,stain		Appelez-nous	-
9	DA67-01268A		Cap-chute;next,abs				$ 9.19
10	DA97-01800U		Assy-gasket Door,fre;next-pjt		Appelez-nous	-
11	DA97-03099A		Assy Guard-fre,upp;next				$ 67.05
12	DA97-03141A		Assy-guard Fre Low,titl;next		Appelez-nous	-
13	Y00000000		See Note Support Guard-fre Low,tilt Currently Unavailable		Appelez-nous	-
14	Y00000000		See Note Grommet Hinge-mid Currently Unavailable		Appelez-nous	-
15	DA61-02373A		Stopper Door-l;next,shp1,t3.0		Appelez-nous	-
16	DA61-02383A		Support-door Close;next,pom,-,				$ 7.09
