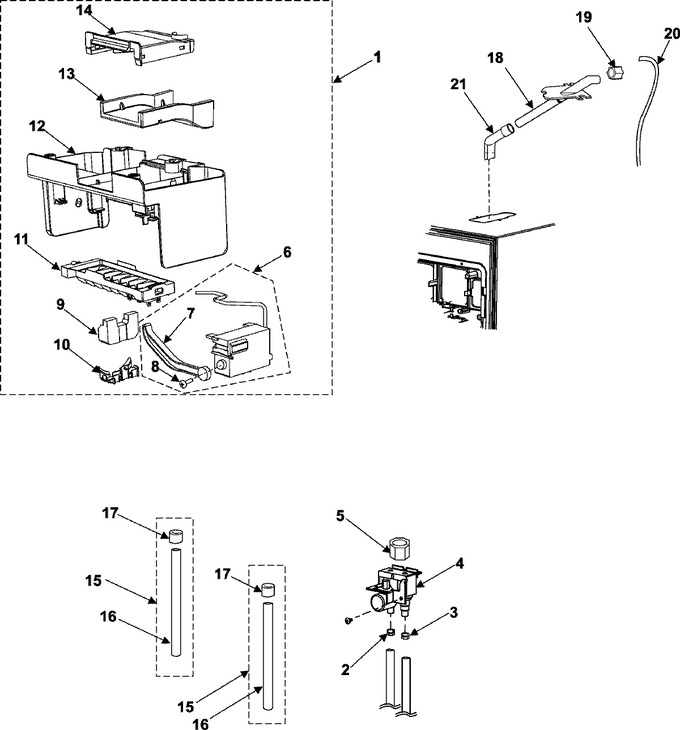

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA97-03172A		Assy Ice Maker-mech				$ 142.04
2	DA71-20208A		Fixer-water Valve				$ 3.23
3	DA71-20207A		Fixer Water Valve 3				$ 1.66
4	DA62-00305A		Valve-fitting Pu				$ 24.72
4	DA99-00240G		Assy Packing-valve;next,exp				$ 50.20
5	DA74-00070A		Valve-fitting-nut				$ 10.60
6	555555		Assy Ice Maker   (Replaces: DA59-00294A)				$ 151.94
6	DA71-20252A		Fixer-grommet D/fre		Appelez-nous	-
7	555555		Guide Ice-full;queen,abs   (Replaces: DA61-00954A)				$ 151.94
8	Y00000000		See Note Screw-tapping Currently Unavailable		Appelez-nous	-
9	DA61-01800A		Fixer-sensor;ad,urethane Foam,			Immediately	$ 29.82
10	DA63-02183A		Cover-sensor				$ 3.23
11	DA63-02284B		Tray Ice;ad,pp(bj73slw180),-,-   (Replaces: DA63-02284A)				$ 33.52
12	DA61-02542A		Support-ice Maker				$ 65.90
13	DA62-01059A		Insulation Support, Ice Maker		Appelez-nous	-
14	DA63-02820A		Cover-supt Ice Maker		Appelez-nous	-
15	DA97-00359A		Assy Tube-drain				$ 10.60
16	DA62-20001R		Tube Pvc		Appelez-nous	-
17	DA63-00951C		Grommet-drain Hose			Immediately	$ 12.60
18	DA61-00764A		Guide-pipe Water,ice		Appelez-nous	-
18	DA62-00068D		Seal-tube Foam,pe;next		Appelez-nous	-
18	DA97-00708J		Assy Pipe-water Ice;next		Appelez-nous	-
19	DA63-01274A		Grommet-tube Water		Appelez-nous	-
20	DA62-00040E		Pipe-water Ice,al;next		Appelez-nous	-
21	DA63-02928A		Grommet-water Pipe Fill,in				$ 21.43
