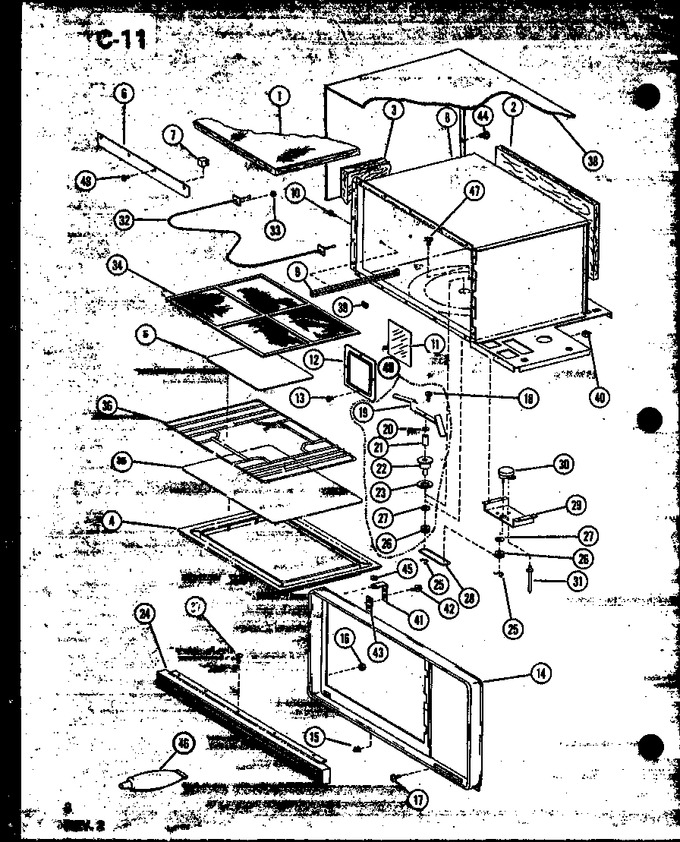

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8307302		Insul-oven Top		Appelez-nous	-
2	B8307202		Insul-back Oven		Appelez-nous	-
3	B8307102		Insul-lft Oven		Appelez-nous	-
4	D7428101		Tray Support (small)		Appelez-nous	-
5	C2718401		Oven Tray		Appelez-nous	-
6	C8827101		Isolator, Oven Heat		Appelez-nous	-
7	B5797401		Heater Supt		Appelez-nous	-
8	D7432003		Oven Cavity		Appelez-nous	-
9	C8839802		Guide K		Appelez-nous	-
9	C8839902		Guide-oven Rack		Appelez-nous	-
10	M0234114		Screw		Appelez-nous	-
11	B8304301		Glass,oven Light		Appelez-nous	-
12	C8840301		Bracket Oven Light		Appelez-nous	-
13	M0211516		Screw A K		Appelez-nous	-
14	C8837503		Bezel		Appelez-nous	-
15	A1018401		Clip Exhaust Duct		Appelez-nous	-
16	M0282901		Nut, Self Thread		Appelez-nous	-
17	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
18	M0202515		Screw A		Appelez-nous	-
19	B8302701		Antenna A		Appelez-nous	-
20	M0272503		Washer		Appelez-nous	-
21	B8302801		Shaft, Antenna		Appelez-nous	-
22	A1005502		Antenna Dr Coupler A		Appelez-nous	-
23	A1005402		Bearing A		Appelez-nous	-
24	D7414401		Grille		Appelez-nous	-
25	A1021601		Retainer Ring A		Appelez-nous	-
26	YA0381501		Clip, Waterline		Appelez-nous	-
27	M0270535		Washer		Appelez-nous	-
28	A1021701		O Ring		Appelez-nous	-
29	B8310901		Bracket		Appelez-nous	-
30	B8308302		Motor		Appelez-nous	-
31	A4539601		Pop Rivet		Appelez-nous	-
32	C8830501		Broil Heater, 120 V., 1400 Wat		Appelez-nous	-
33	M0282005		Nut K				$ 7.07
34	D7454101		Rack		Appelez-nous	-
35	C8841201		Oven Tray		Appelez-nous	-
36	D7428002		Oven Rack Assy		Appelez-nous	-
37	M0217514		Screw		Appelez-nous	-
38	D7414501		Wrapper-bent		Appelez-nous	-
39	B8308801		Spring Fastener		Appelez-nous	-
40	M0110505		Clip-cable		Appelez-nous	-
41	B8300301		Hinge		Appelez-nous	-
41	B8300101		Hinge		Appelez-nous	-
42	WP489128		Screw   (Replaces: M0253516)				$ 9.79
43	B8314401		Shim		Appelez-nous	-
43	B8314402		Shim		Appelez-nous	-
43	B8314403		Shim		Appelez-nous	-
44	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
45	M0274032		Washer Non-metal		Appelez-nous	-
45	M0274046		Washer		Appelez-nous	-
46	M0910003		Adhesive Melt Pint		Appelez-nous	-
47	M0234016		Screw		Appelez-nous	-
48	M0213815		Screw		Appelez-nous	-
49	B8324201		Antenna Assembly		Appelez-nous	-
