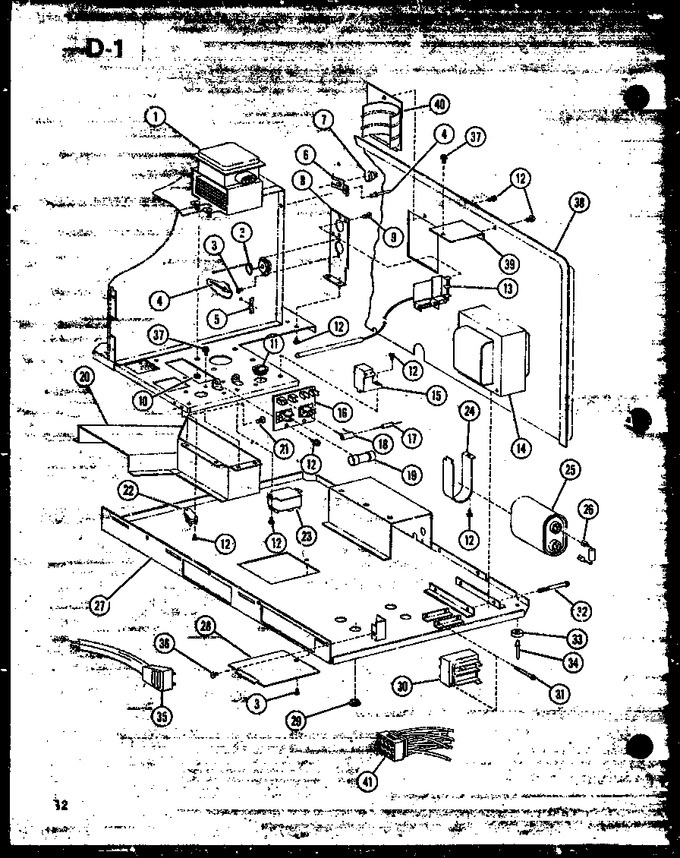

RMC-20 (BOM: P7413002M) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	C8761709	Magnetron	Appelez-nous	-
2	C8864601	Control	Appelez-nous	-
3	M0213815	Screw	Appelez-nous	-
4	A4539601	Pop Rivet	Appelez-nous	-
5	A1016301	Clip	Appelez-nous	-
6	B5725102	Clip	Appelez-nous	-
7	B5665821	Thermal Cutout	Appelez-nous	-
8	B8307702	Bracket	Appelez-nous	-
9	M0202528	Screw	Appelez-nous	-
10	M0282801	Lock-nut---k	Appelez-nous	-
11	A3293503	Snap Bushing	Appelez-nous	-
12	WP489349	Screw (Replaces: M0216515)		Immediately	$ 7.09
13	C8860501	Thermostat	Appelez-nous	-
14	D7474101	Transformer	Appelez-nous	-
15	B5767803	Kit, Diode	Appelez-nous	-
16	C8841603	Terminal Board	Appelez-nous	-
17	M0308109	Fuse Resistor K (Replaces: M0308107)	Appelez-nous	-
17	M0308102	Fuse	Appelez-nous	-
18	M0308607	Resistor K	Appelez-nous	-
18	M0308601	Resistor A	Appelez-nous	-
19	M0850507	Fuse-20a	Appelez-nous	-
20	C8826901	Exhqust	Appelez-nous	-
21	M0229916	Screw T.c	Appelez-nous	-
22	B8308701	Kit, Triac Assy	Appelez-nous	-
23	B5773502	Relay K	Appelez-nous	-
24	A3257003	Strap-capacitor	Appelez-nous	-
26	A1001901	Resistor Assy	Appelez-nous	-
27	D7404102	Basepan Weldment	Appelez-nous	-
28	B8303302	Cover Plate	Appelez-nous	-
29	M0311104	Plug	Appelez-nous	-
30	C8807805	Transformer	Appelez-nous	-
31	M0254412	Screw	Appelez-nous	-
32	M0254449	Screw	Appelez-nous	-
33	B5732505	Foot	Appelez-nous	-
34	A4539619	Pop Rivet	Appelez-nous	-
35	B8310502	Cord, Power	Appelez-nous	-
36	M0230028	Screw, No.8-32 X 5/16 Pph (blk)	Appelez-nous	-
37	WP489349	Screw (Replaces: M0216515)		Immediately	$ 7.09
38	C8829201	Back Plate Pnt	Appelez-nous	-
39	A1019901	Back Plate	Appelez-nous	-
40	B8300803	Cover Plate Pnt.	Appelez-nous	-
41	D7500201	Wiring Harness	Appelez-nous	-
NI	D7292655	Jumper Wire	Appelez-nous	-
NI	C8849601	Jumper Wire	Appelez-nous	-
