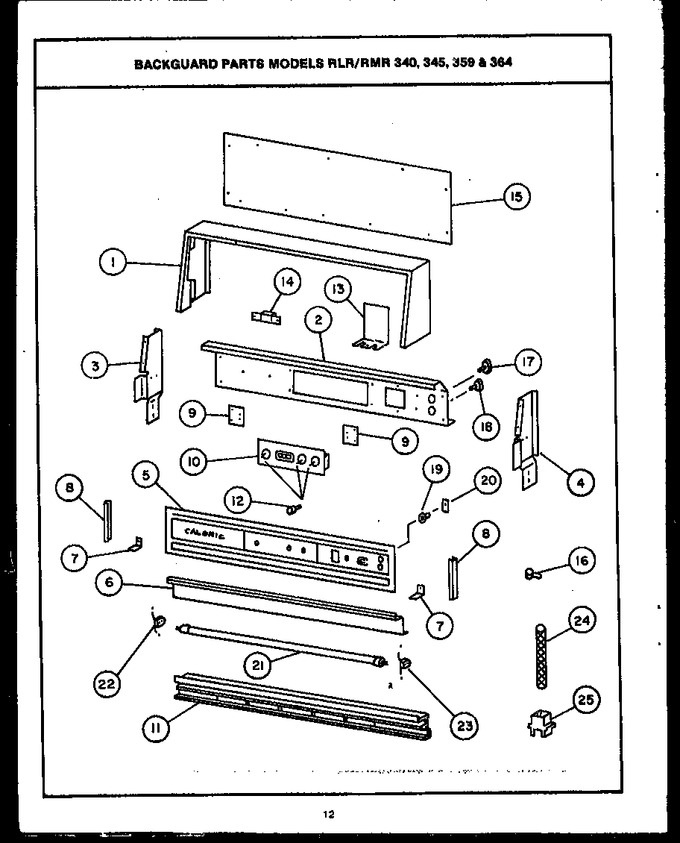

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R3554		Frame   (Replaces: 65105)				$ 42.49
2	65099		Panel - Control Mounting		Appelez-nous	-
3	65095		Bracket, Backguard Mounting -		Appelez-nous	-
4	65096		Bracket, Backguard Mounting -		Appelez-nous	-
5	65063		Glass, Control Panel		Appelez-nous	-
5	65093		Glass, Control Panel		Appelez-nous	-
6	Y65101		Plate, Bottom		Appelez-nous	-
7	65113		Angle - Glass Support		Appelez-nous	-
8	Y65872		Channel, Glass		Appelez-nous	-
9	Y65112		Mounting Plate - Clock		Appelez-nous	-
10	65075		Clock - Timer, 50 Cycle		Appelez-nous	-
10	238702		Clock - Timer, 60 Cycle   (Replaces: 65076)			Immediately	$ 0.51
11	75256		Gasket		Appelez-nous	-
12	68084		Knob		Appelez-nous	-
13	R3555		Cover, Terminal   (Replaces: 65106)		Appelez-nous	-
14	65033		Ballast		Appelez-nous	-
14	Y65032		Ballast, 50 Cycle		Appelez-nous	-
15	65115		Rear Cover Plate		Appelez-nous	-
16	97492		Wire Binder		Appelez-nous	-
17	65951		Switch, Oven Light		Appelez-nous	-
18	Y67947		Switch, Fluorescent Light		Appelez-nous	-
19	65051		Bezel, Switches				$ 11.25
20	65052		Speed Nut		Appelez-nous	-
21	WPY0067945		Lamp, Fluorescent   (Replaces: 67945)				$ 29.33
22	75036		Washer, Thrust		Appelez-nous	-
23	75037		Service Cord				$ 122.14
24	93776		Fiberglass Sleeve		Appelez-nous	-
25	70361		Terminal Block		Appelez-nous	-
