Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y68326 Knob, Oven Heat Control Appelez-nous -
1 68323 Knob, Top Burner Appelez-nous -
2 Y74379 Burner Assembly-left Front Appelez-nous -
3 Y74377 Burner Assembly-left Rear Appelez-nous -
4 74378 Burner Assembly-right Front Appelez-nous -
5 74376 Burner Assembly-right Rear Appelez-nous -
6 Y67001 Valve, Top Burner Appelez-nous -
7 0097617 Hood Orif Nbr 54 Appelez-nous -
8 65002 Manifold Appelez-nous -
9 64683 Valve, Gas Electric Appelez-nous -
10 0097641 Hood Orif Nbr 47 Appelez-nous -
11 70280 Oven Burner Appelez-nous -
12 69987 Tubing Assembly - Ilete To Man Appelez-nous -
13 70427 Drive Pin Appelez-nous -
14 Y66383 Pipe Nipple Assembly Appelez-nous -
15 72129 Straight Connector 3/8`` Fl. X Special Order $ 17.39

17 70357 O-ring Appelez-nous -
19 74440 Valve, Shut Off Appelez-nous -
20 70976 Rugular, Pressure - Univ. Appelez-nous -
21 Y0094858 Elbow Fitting (90 Degree) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

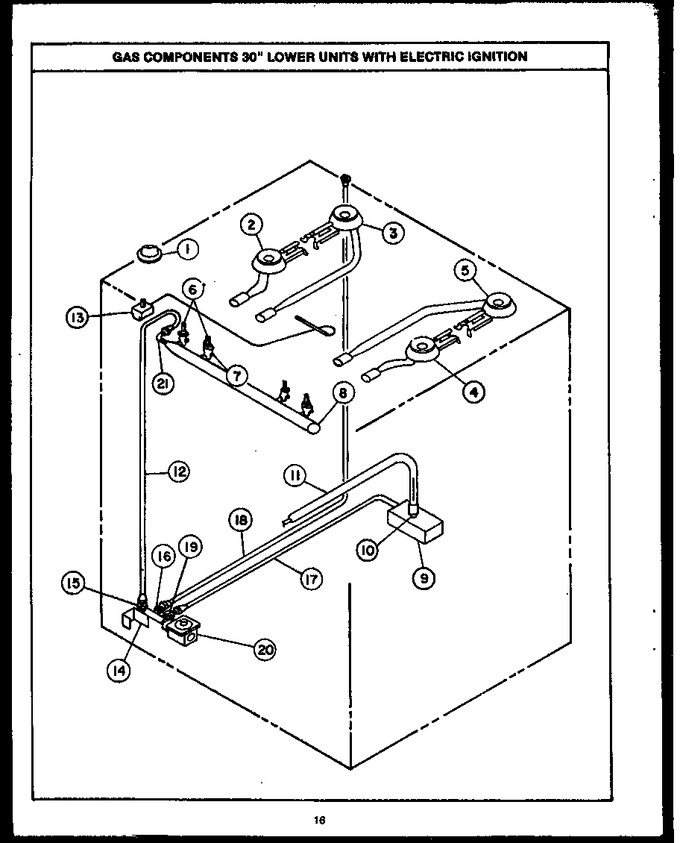

Diagram for RMR359
