SELECT A DIAGRAM

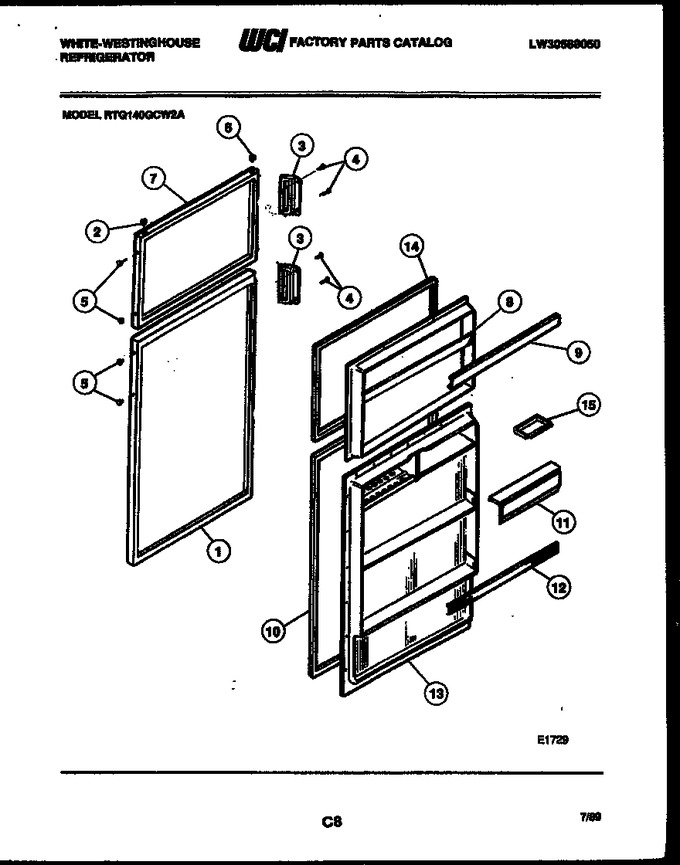

02 - Door Parts


03 - Cabinet Parts


04 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G187529		Panel-refr-white		Appelez-nous	-
2	G183138		Hinge Bearing (8)		Appelez-nous	-
3	3016493		Handle-white				$ 88.88
4	G184795		Screw-handle (4)		Appelez-nous	-
5	G162977-01		Button Plug-white		Appelez-nous	-
6	G169332-01		Button Plug, White		Appelez-nous	-
7	G187528		Panel-frzr-white		Appelez-nous	-
8	G180230-01		Panel-inner		Appelez-nous	-
9	G163316-65		Rack-frzr Door		Appelez-nous	-
10	G186932-02		Gasket-refr Door		Appelez-nous	-
11	G161776-33		Door-dairy		Appelez-nous	-
12	G163316-66		Rack-refr Door (2)		Appelez-nous	-
13	G180228-01		Panel-inner		Appelez-nous	-
14	G186932-03		Gasket-frzr Door		Appelez-nous	-
15	G161079		Dish, Butter		Appelez-nous	-
13A	G162585		Screw		Appelez-nous	-
8A	G162585		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
