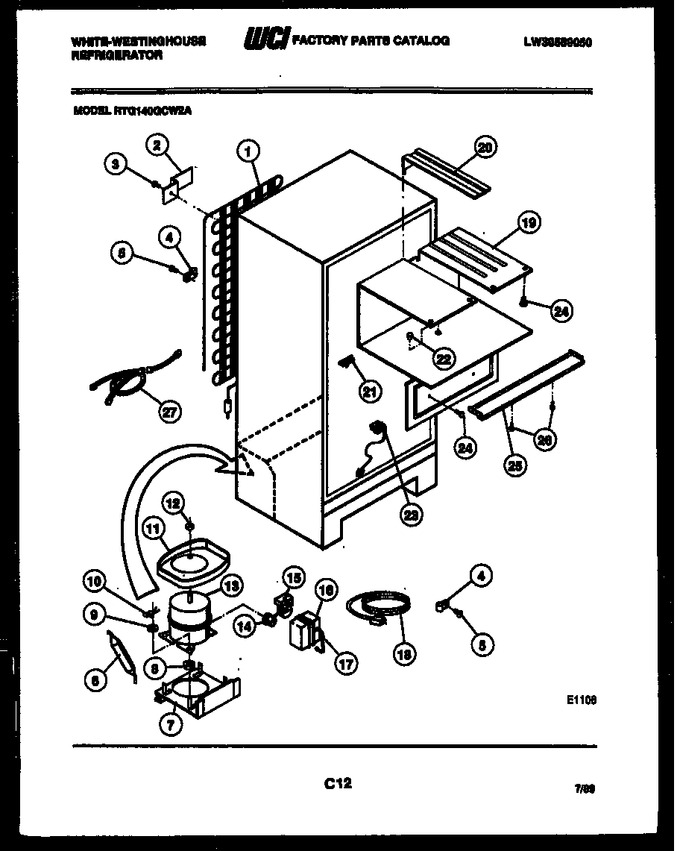

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G178225		Condenser		Appelez-nous	-
2	G164637		Bracket-condenser Mounting (4)		Appelez-nous	-
3	G160578		Screw		Appelez-nous	-
4	G27669		Clamp-cable (4)		Appelez-nous	-
5	G187009		Screw-8-15 X 1/2		Appelez-nous	-
6	3007351		Drier-filter		Appelez-nous	-
7	G162822		Plate, Compr., Mtg		Appelez-nous	-
8	G177617		Grommet (4)		Appelez-nous	-
9	G164634		Washer (3)		Appelez-nous	-
10	G163204		Clip (3)		Appelez-nous	-
11	G184716		Defrost Pan		Appelez-nous	-
12	G164958		Lock Nut-pan Mtg		Appelez-nous	-
13	3916308		Compressor With Electricals		Appelez-nous	-
14	3204487		Overload		Appelez-nous	-
15	216594300		Relay   (Replaces: 3204486)				$ 28.92
16	G169333		Cover-terminal		Appelez-nous	-
17	G166057		Strap-cover Mounting		Appelez-nous	-
18	G162549-01		Service Cord		Appelez-nous	-
19	G186728		Evaporator		Appelez-nous	-
20	G189211		Trim-evaporator Center		Appelez-nous	-
21	G178497		Clamp, Control Bulb		Appelez-nous	-
22	G164854		Spacer, Divider		Appelez-nous	-
23	G186467		Heater, Tube		Appelez-nous	-
24	G187363		Screw		Appelez-nous	-
25	G162980-01		Molding-evaporator		Appelez-nous	-
26	G162673		Screw-8 X 1 3/4 (2)		Appelez-nous	-
27	G174801		Wiring Harness		Appelez-nous	-
*20836	G189377		Hot Tube Repair Kit		Appelez-nous	-
11A	G169873		Sound Tape (non-illustrated)		Appelez-nous	-
11B	3916001		Pan Retainer Kit (non-illustrated)		Appelez-nous	-
14A	G188957		Clip-overload (non-illustrated)		Appelez-nous	-
21A	G187363		Screw		Appelez-nous	-
22A	G162673		Screw-spacer Mounting		Appelez-nous	-
2A	G164820		Washer-no. 10 Ext Tooth Lock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
