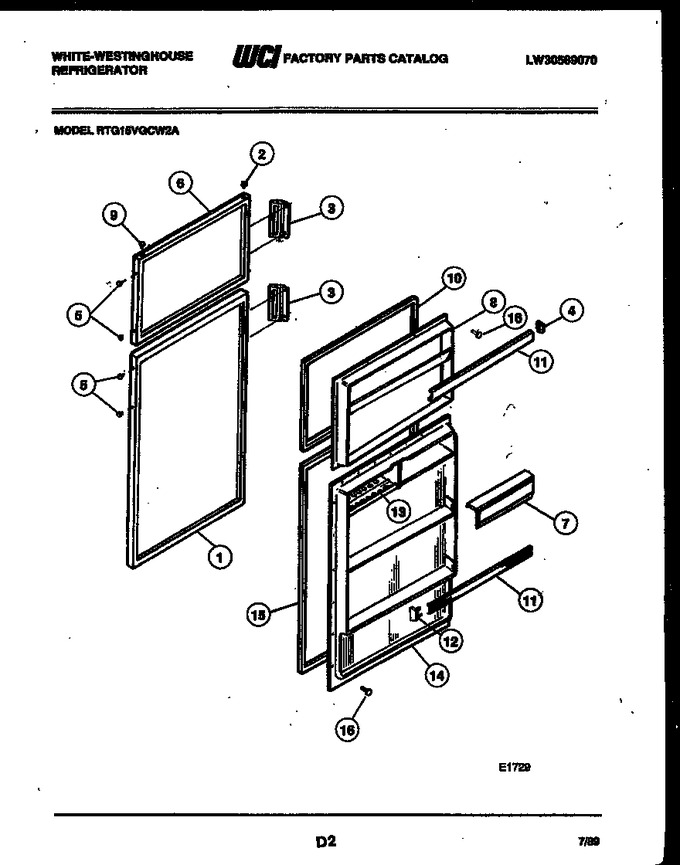

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G187529-11 | Panel-refr-almd |
|
- | |||||
| 2 | G169332-11 | Button Plug, Almond |
|
- | |||||
| 3 | 3016496 | Handle-almond |
|
- | |||||
| 4 | G176891-01 | End Cap-rh (3) |
|
- | |||||
| 5 | G162977-11 | Button Plug-almond |
|
- | |||||
| 6 | G187528-11 | Panel-frzr-almd |
|
- | |||||
| 7 | R186414-02 | Dairy Door |
|
- | |||||
| 8 | G186463-01 | Panel-inner Freezer |
|
- | |||||
| 9 | G183138 | Bearing Hinge (8) |
|
- | |||||
| 10 | G186932-03 | Gasket-freezer |
|
- | |||||
| 12 | G176892-01 | End Cap-lh (3) |
|
- | |||||
| 13 | G172885-04 | Tray-egg |
|
- | |||||
| 14 | R186469-02 | Panel-inner Refr |
|
- | |||||
| 15 | G186932-02 | Gasket-refrigerator |
|
- | |||||
| 16 | G162585 | Screw |
|
- | |||||
| 3A | G184795 | Screw-handle (4) |
|
- |
