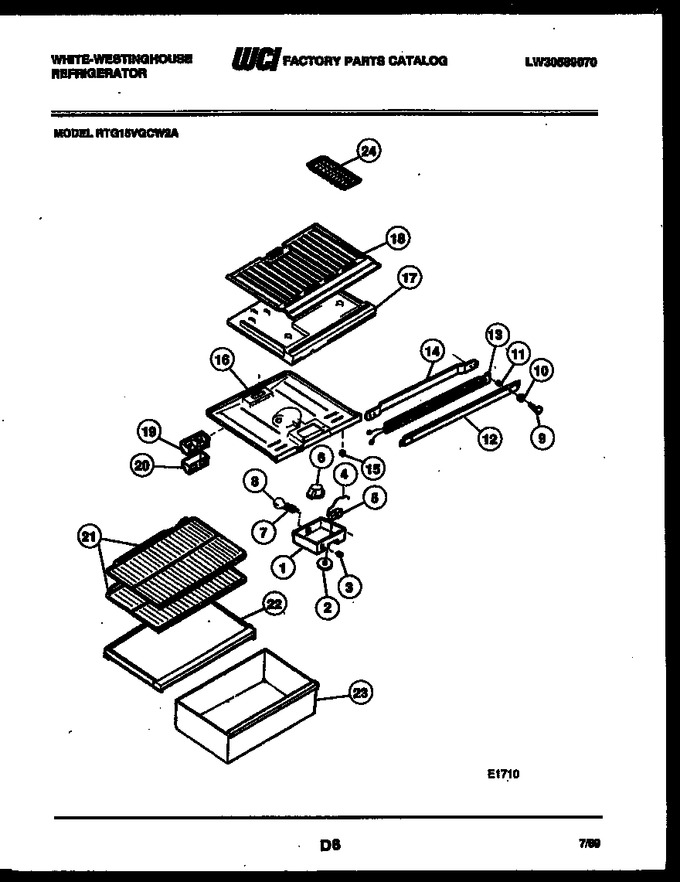

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G176722-02		Control Box		Appelez-nous	-
2	G490107-02		Knob-temp Control		Appelez-nous	-
3	G178402-01		Switch-energy Saver		Appelez-nous	-
4	G142176-11		Sleeve-plastic		Appelez-nous	-
5	G162205-12		Control Temperature		Appelez-nous	-
6	G188540		Timer-defrost		Appelez-nous	-
7	G168302		Light Socket		Appelez-nous	-
8	G168318		Light Bulb		Appelez-nous	-
9	G183103		Screw-mullion (4)		Appelez-nous	-
10	G166847		Washer-no. 10 Steel (2)		Appelez-nous	-
11	G166848		Spacer-mullion (2)		Appelez-nous	-
11	R490079-21		Rack Door (3)		Appelez-nous	-
12	3916134		Mullion-almond		Appelez-nous	-
13	G166635		Heater-mullion		Appelez-nous	-
14	G166709		Strap-mullion Mtg		Appelez-nous	-
15	G162672		Light Switch		Appelez-nous	-
16	3015448		Top Panel-refrig		Appelez-nous	-
17	G163219		Divider-styrofoam		Appelez-nous	-
18	G162857		Bottom Panel-freezer		Appelez-nous	-
19	G162675		Air Deflector		Appelez-nous	-
20	G162178		Cover, Deflector		Appelez-nous	-
21	G172173-01		Shelf-refr (2)		Appelez-nous	-
22	G162957-02		Cover-pan		Appelez-nous	-
23	G162973-34		Pan-storage		Appelez-nous	-
24	G156376-01		Ice Tray (2)		Appelez-nous	-
16A	G162673		Screw-top Mtg (3) (non-illustrated)		Appelez-nous	-
17A	3015682		Wiring Harness-divider (non-illustrated)		Appelez-nous	-
18A	G168866		Tape Pad-vent		Appelez-nous	-
1A	G180037		Label-control Box (non-illustrated)		Appelez-nous	-
1B	G187363		Screw		Appelez-nous	-
5A	G107080		Screw		Appelez-nous	-
6A	G105289		Screw		Appelez-nous	-
7A	G183021		Shield-light Socket (non-illustrated)		Appelez-nous	-
