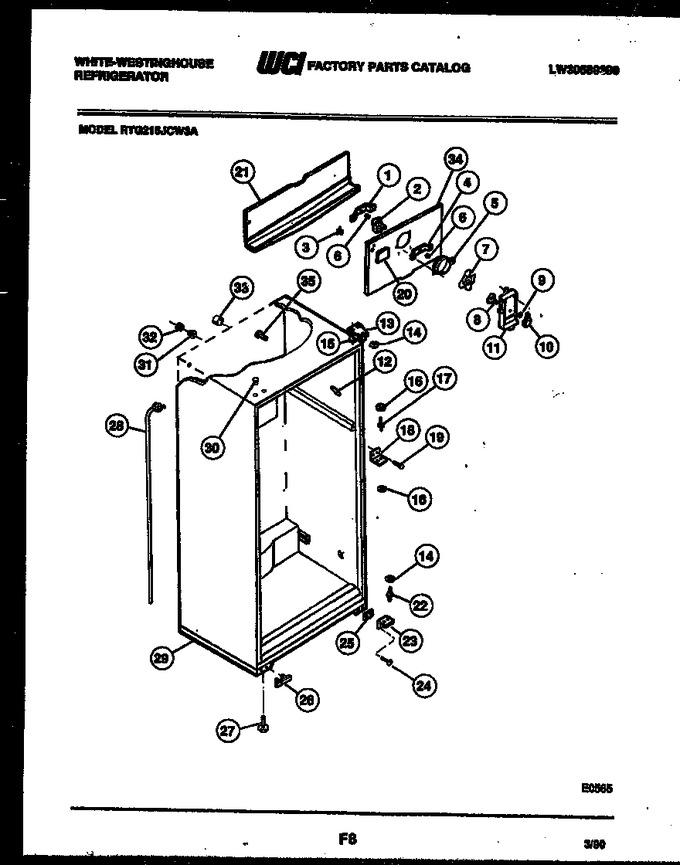

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G185303 | Bracket-rear |
|
- | |||||
| 2 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 3 | G164571 | Connector Bracket |
|
- | |||||
| 4 | G185302 | Bracket-front |
|
- | |||||
| 5 | G167217 | Orifice Ring |
|
- | |||||
| 6 | G157666 | Bushing (2) |
|
- | |||||
| 7 | G174705 | Fan Blade |
|
- | |||||
| 8 | G162661 | Damper |
|
- | |||||
| 9 | G162662 | Push Nut-damper |
|
- | |||||
| 10 | 5316266313 | Knob-damper Control |
|
- | |||||
| 11 | 5303208889 | Cover-fan |
|
- | |||||
| 12 | 5303202338 | Corner Trim, Wheat |
|
- | |||||
| 13 | G183714 | Hinge-top |
|
- | |||||
| 14 | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 15 | G183861 | Shim Top Hinge |
|
- | |||||
| 16 | G164355 | Washer-center Hinge |
|
- | |||||
| 17 | G142220 | Pin |
|
- | |||||
| 18 | G163207 | Bracket-center Hinge |
|
- | |||||
| 19 | G183103 | Screw-mounting (2) |
|
- | |||||
| 20 | 5308013636 | Plug, Decorative |
|
- | |||||
| 21 | 5303001470 | Drain Trough |
|
- | |||||
| 22 | G166505 | Pin-bottom Hinge |
|
- | |||||
| 23 | 5303202834 | Bracket, Bottom Hinge |
|
$ 89.41 | |||||
| 24 | G181020 | Screw-mounting (2) |
|
- | |||||
| 25 | G163203 | Shim-bottom Hinge |
|
- | |||||
| 26 | G166912 | Plug-hinge Hole |
|
- | |||||
| 27 | G185713 | Leveling Leg (2) |
|
- | |||||
| 28 | 5303001458 | Drain Tube |
|
- | |||||
| 29 | 5308010092 | Cabinet Base |
|
- | |||||
| 30 | G174747-09 | Plug-button, Wheat |
|
- | |||||
| 31 | G174734 | Ferrule, Inner |
|
- | |||||
| 32 | G174734 | Ferrule Outer |
|
- | |||||
| 33 | G85642 | Tube, Rubber (2) |
|
- | |||||
| 34 | 5308013665 | Cover, Evaporator Coil |
|
- | |||||
| 35 | G163669 | Support, Cover (2) |
|
- | |||||
| *26337 | G167565 | Grommet-shelf Mtg Rs (6) |
|
- | |||||
| *26337 | G176993 | Grommet-shelf Mtg Ls (6) |
|
- | |||||
| *26337 | G187599 | Plug-freezer Liner (3) |
|
- | |||||
| 11A | G187363 | Screw |
|
- | |||||
| 11B | G000180137 | Label-fan Cover |
|
- | |||||
| 13A | G167103 | Screw-mounting (2) (non-illustrated) |
|
- | |||||
| 13B | 5308012296 | Tapping Plate (2) (non-illustrated) |
|
$ 47.44 | |||||
| 23A | 5308012296 | Tapping Plate (2) (non-illustrated) |
|
$ 47.44 | |||||
| 27A | G183073 | Anchor Nut (2) (non-illustrated) |
|
- | |||||
| 28A | 5308000056 | Spout-drain Tube |
|
$ 11.66 | |||||
| 28B | 5303001361 | Pin, Push, Drain Spout (2) (non-illustrated) |
|
- | |||||
| 28C | 5303207353 | Ring-seal Drain Tube (non-illustrated) |
|
$ 6.81 | |||||
| 34A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 34B | G167542 | Nut-u Type (2) (non-illustrated) |
|
- | |||||
| 34C | 5303203044 | Plug-short Test Hole (non-illustrated) |
|
- | |||||
| 3A | G162585 | Screw |
|
- | |||||
| 5A | G162585 | Screw |
|
- |
