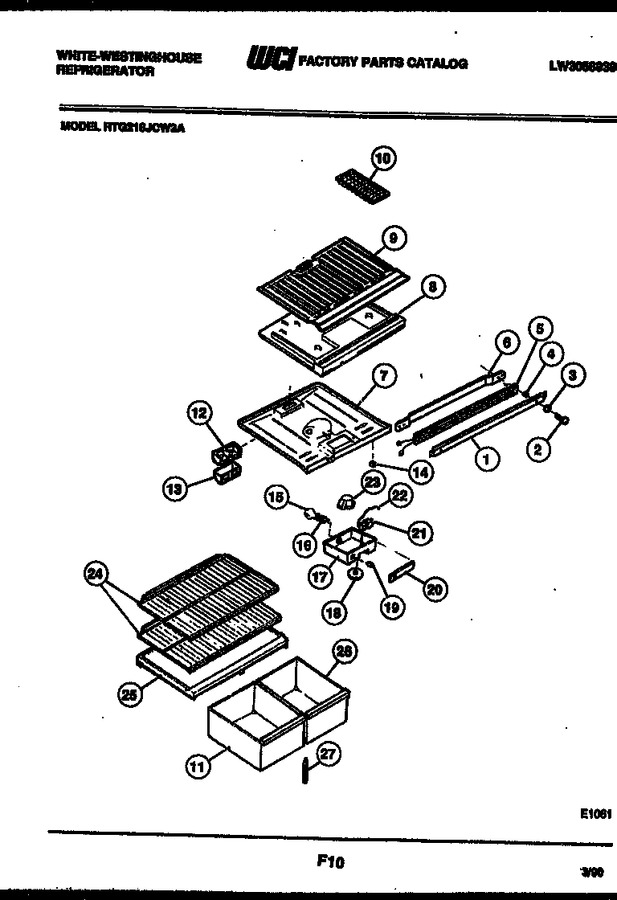

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200368		Mullion, Wheat		Appelez-nous	-
2	G183103		Screw-mullion (4)		Appelez-nous	-
3	5303206754		Washer-no. 10 Steel (2)		Appelez-nous	-
4	5303200464		Spacer, Mullion (2)		Appelez-nous	-
5	5303018916		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	5303001651		Top Panel-refr		Appelez-nous	-
8	5308013674		Divider-styrofoam		Appelez-nous	-
9	5303001472		Bottom Panel-frzr		Appelez-nous	-
10	G156376-01		Ice Tray (2)		Appelez-nous	-
11	5349001501		Pan-crisper Small-ls		Appelez-nous	-
12	5308000071		Air Deflector		Appelez-nous	-
13	5303001546		Cover, Deflector		Appelez-nous	-
14	5309918806		Light Switch			Immediately	$ 21.97
15	5303001179		Light Bulb		Appelez-nous	-
16	G168302		Light Socket		Appelez-nous	-
17	5308009730		Control Box		Appelez-nous	-
18	08006978		Knob-temperature Control		Appelez-nous	-
19	3001338		Switch-energy Saver		Appelez-nous	-
20	3205689		Label-control Box		Appelez-nous	-
21	5303200810		Control-temperature				$ 126.87
22	G142176-11		Sleeve-plastic Tube		Appelez-nous	-
23	215846602		Timer-defrost   (Replaces: 5300187484)			Immediately	$ 28.20
24	G191665-01		Shelf-refrigerator (2)		Appelez-nous	-
25	5303007603		Cover-pan		Appelez-nous	-
26	G176639-22		Pan-storage Large Rs		Appelez-nous	-
27	5303206507		Support-pan Cover Adj		Appelez-nous	-
17A	G187363		Screw		Appelez-nous	-
21A	G107080		Screw		Appelez-nous	-
23A	G105289		Screw		Appelez-nous	-
24A	3201150		Cap-shelf Protector (4) (non-illustrated)				$ 4.57
7A	G162673		Screw-top Mtg (3) (non-illustrated)		Appelez-nous	-
8A	G184904		Wiring Harness-divider (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
