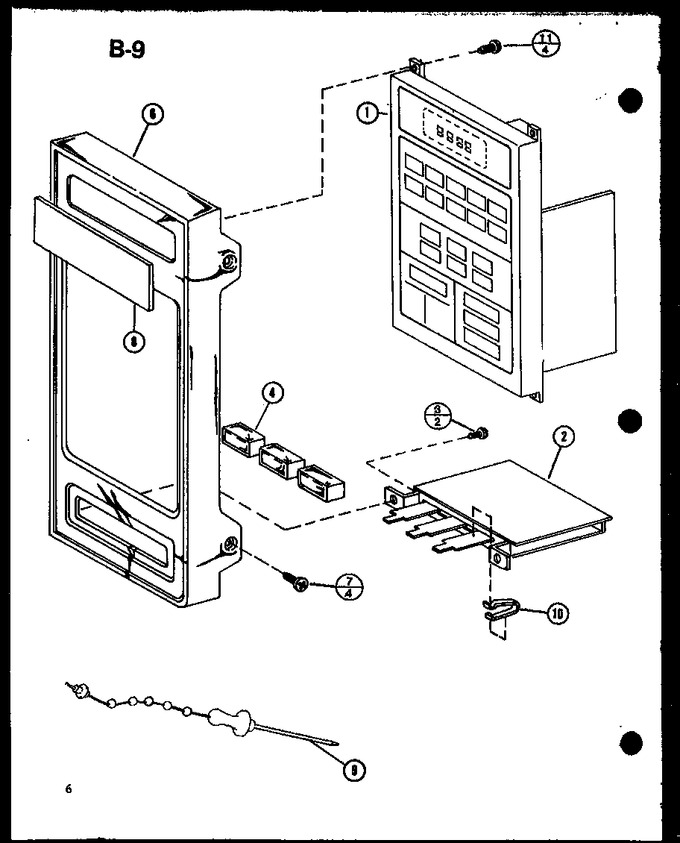

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0163068 | Net-assy,module |
|
- | |||||
| 2 | D7546302 | Switch Ssl K |
|
- | |||||
| 3 | W11084238 | Screw (Replaces: M0234001) |
|
- | |||||
| 4 | C8869301 | Light Button |
|
- | |||||
| 4 | C8869401 | Stop Button |
|
- | |||||
| 4 | C8869501 | Start Button |
|
- | |||||
| 6 | D7569501 | Escutch, Control |
|
- | |||||
| 7 | M0253244 | Screw |
|
- | |||||
| 8 | A1038701 | Nameplate |
|
- | |||||
| 9 | C8821503 | Temp Probe |
|
- | |||||
| 10 | A1039301 | Spring |
|
- | |||||
| 11 | M0234016 | Screw |
|
- | |||||
| NI | A3030335 | Gasket-per Ft |
|
- |
