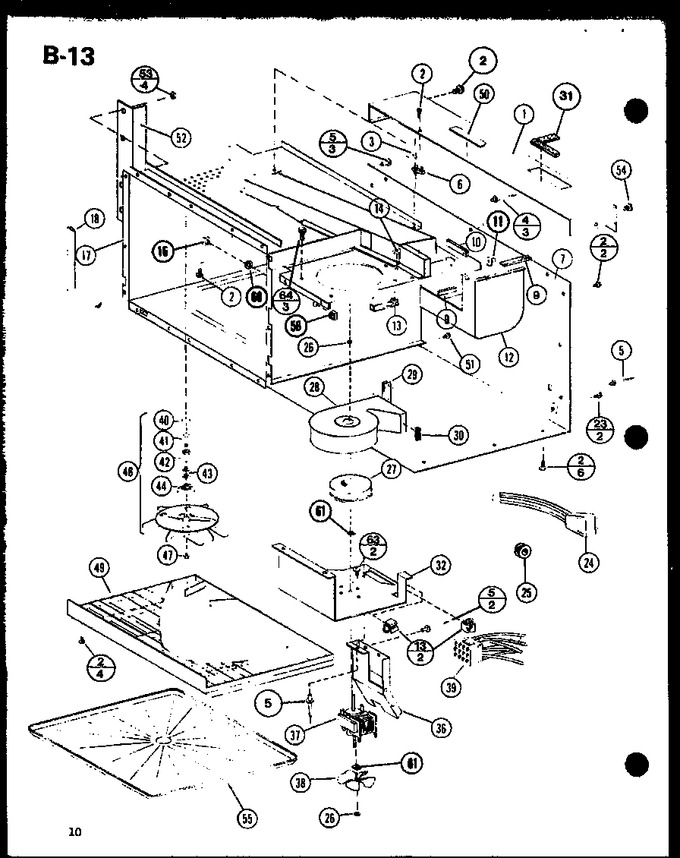

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7529506 | Duct Weld Pnt |
|
- | |||||
| 2 | M0213815 | Screw |
|
- | |||||
| 3 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 4 | A4539619 | Pop Rivet |
|
- | |||||
| 5 | A4539601 | Pop Rivet |
|
- | |||||
| 6 | B5795303 | Fuse, Thermal |
|
- | |||||
| 7 | D7470402 | Base Pan |
|
- | |||||
| 9 | A3030309 | Gasket (per Foot) |
|
- | |||||
| 10 | A3030331 | Gasket-per Ft |
|
- | |||||
| 11 | M0288213 | Clip |
|
- | |||||
| 12 | D7349003 | Magnetron Cover |
|
- | |||||
| 13 | M0110505 | Clip-cable |
|
- | |||||
| 14 | M0282801 | Lock-nut---k |
|
- | |||||
| 16 | M0281405 | Nut K |
|
- | |||||
| 17 | D7350516 | Oven Weld |
|
- | |||||
| 18 | D7442201 | Gasket Oven Cavity |
|
- | |||||
| 23 | M0253543 | Screw K |
|
- | |||||
| 24 | B5703506 | Power Cord |
|
- | |||||
| 25 | M0370001 | Strain Relief |
|
- | |||||
| 26 | WP3195558 | Clip-blwr Ret (Replaces: M0118903) |
|
$ 7.68 | |||||
| 27 | C8847001 | Blower Wheel |
|
- | |||||
| 28 | C8849201 | Blower, Scroll |
|
- | |||||
| 29 | A3030333 | Gasket (1=1ft.) |
|
- | |||||
| 30 | A3030314 | Gasket-per Ft |
|
- | |||||
| 32 | C8910001 | Bracket-blower |
|
- | |||||
| 36 | C8925201 | Air Chute Weld |
|
- | |||||
| 37 | C8793203 | Motor |
|
- | |||||
| 38 | B5706701 | Fan Blade |
|
- | |||||
| 39 | D7585301 | Harness Chassis |
|
- | |||||
| 40 | B5792601 | Bearing Cap |
|
- | |||||
| 41 | B5783101 | Stub-antenna A |
|
- | |||||
| 42 | B5783001 | Bearing-antenna A |
|
- | |||||
| 43 | M0274044 | Washer |
|
- | |||||
| 44 | C8838501 | Bushing A |
|
- | |||||
| 47 | M0281203 | Nut A |
|
- | |||||
| 48 | C8806701 | Assy, Antenna |
|
- | |||||
| 49 | D7544001 | Grease Shield |
|
- | |||||
| 50 | M0275023 | Tape,alum Per Roll |
|
- | |||||
| 51 | M0230028 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 52 | C8853401 | Plate Back Up |
|
- | |||||
| 53 | M0282009 | Nut |
|
$ 12.06 | |||||
| 54 | M0216519 | Screw |
|
- | |||||
| 55 | D7089603 | Oven Tray Kit |
|
- | |||||
| 58 | B8355401 | Temp Probe Jack K |
|
- | |||||
| 60 | M0270536 | Washer |
|
- | |||||
| 61 | A1034901 | Washer Retainer |
|
- | |||||
| 63 | WP3400094 | Screw (Replaces: M0258055) |
|
$ 7.14 | |||||
| 64 | M0253504 | Screw |
|
- |
