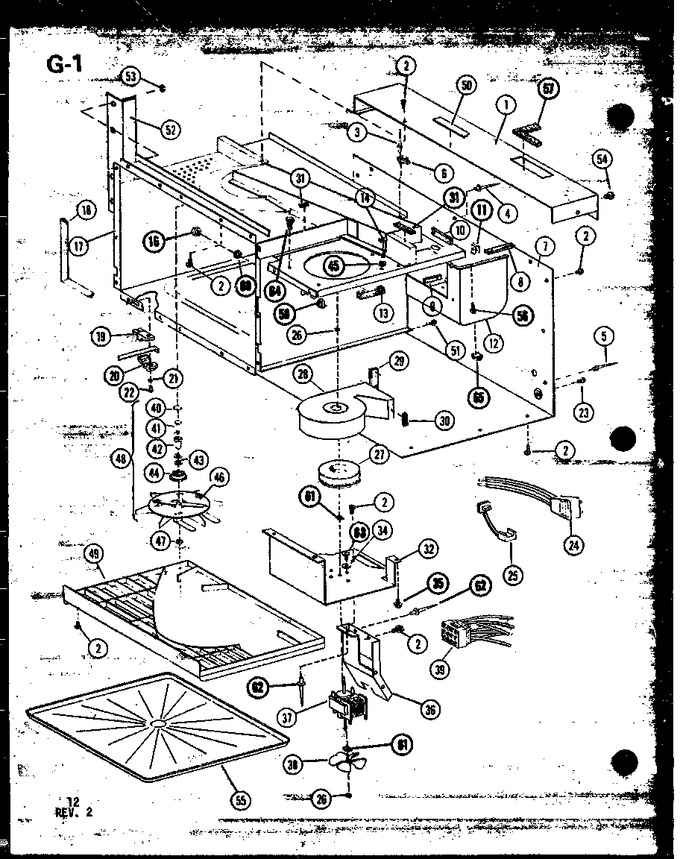

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7529504		Duct Weld Pnt		Appelez-nous	-
2	M0213815		Screw		Appelez-nous	-
3	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
4	A4539619		Pop Rivet		Appelez-nous	-
5	A4539601		Pop Rivet		Appelez-nous	-
6	B5795303		Fuse, Thermal		Appelez-nous	-
7	D7470402		Base Pan		Appelez-nous	-
8	A3030313		Gasket (per Foot)		Appelez-nous	-
9	A3030309		Gasket (per Foot)		Appelez-nous	-
10	A3030331		Gasket-per Ft		Appelez-nous	-
11	M0288213		Clip		Appelez-nous	-
12	D7349002		Magnetron Cover		Appelez-nous	-
13	A3030341		Gasket		Appelez-nous	-
14	M0282801		Lock-nut---k		Appelez-nous	-
16	A3275701		Nut-decorative		Appelez-nous	-
17	D7350508		Oven Weld		Appelez-nous	-
18	D7442201		Gasket Oven Cavity		Appelez-nous	-
19	C3696902		Bushing		Appelez-nous	-
20	C3696903		Bushing		Appelez-nous	-
21	A3171501		Clip,hairpin		Appelez-nous	-
22	A3222601		Pin-door Stop		Appelez-nous	-
23	M0253543		Screw K		Appelez-nous	-
24	B5703506		Power Cord		Appelez-nous	-
25	M0370001		Strain Relief		Appelez-nous	-
26	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
27	C8847001		Blower Wheel		Appelez-nous	-
28	C8849201		Blower, Scroll		Appelez-nous	-
29	A3030333		Gasket (1=1ft.)		Appelez-nous	-
30	A3030314		Gasket-per Ft		Appelez-nous	-
31	A3030329		Gasket-per Ft		Appelez-nous	-
32	C8847301		Bracket		Appelez-nous	-
34	M0272605		Washer		Appelez-nous	-
35	M0234016		Screw		Appelez-nous	-
36	C8848601		Air Chute Assy		Appelez-nous	-
37	C8793202		Motor		Appelez-nous	-
38	B5706701		Fan Blade		Appelez-nous	-
39	D7447901		Wiring Harness		Appelez-nous	-
40	B5792601		Bearing Cap		Appelez-nous	-
41	B5783101		Stub-antenna A		Appelez-nous	-
42	B5783001		Bearing-antenna A		Appelez-nous	-
43	M0274044		Washer		Appelez-nous	-
44	C8838501		Bushing A		Appelez-nous	-
45	M0282005		Nut K				$ 7.07
46	R0183053		Assy, Antenna		Appelez-nous	-
47	M0281203		Nut A		Appelez-nous	-
48	C8806701		Assy, Antenna		Appelez-nous	-
49	D7544001		Grease Shield		Appelez-nous	-
50	M0275023		Tape,alum Per Roll		Appelez-nous	-
51	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
52	C8853401		Plate Back Up		Appelez-nous	-
53	M0282009		Nut				$ 12.06
54	M0213817		Screw		Appelez-nous	-
55	D7089603		Oven Tray Kit		Appelez-nous	-
56	M0216517		Screw		Appelez-nous	-
58	A3275602		Jack Assembly		Appelez-nous	-
63	M0202842		Screw		Appelez-nous	-
