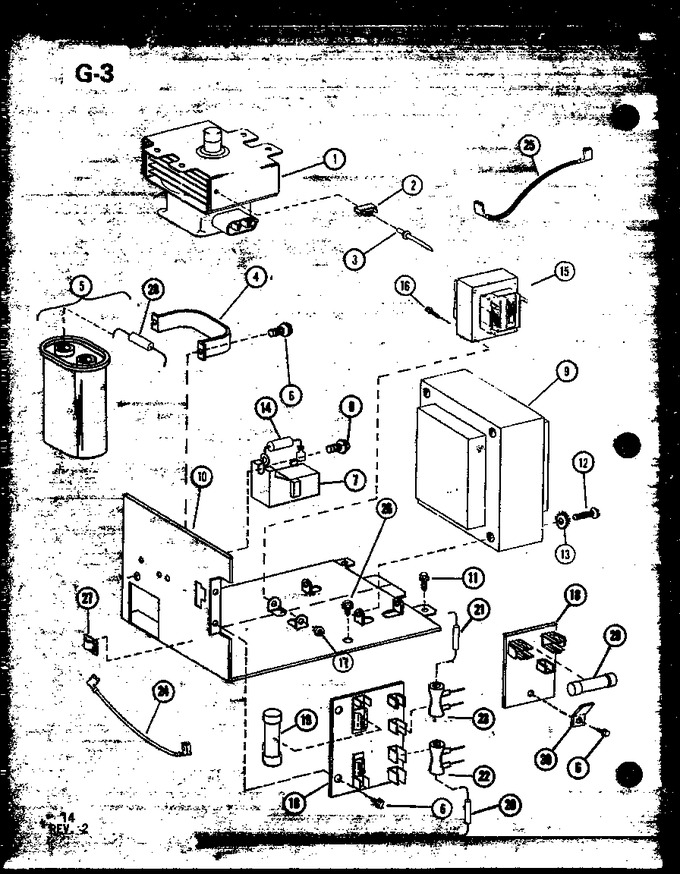

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8761709 | Magnetron |
|
- | |||||
| 2 | B5795302 | Thermal Cut Out |
|
- | |||||
| 3 | A4539601 | Pop Rivet |
|
- | |||||
| 4 | A3257002 | Strap-capacitor |
|
- | |||||
| 5 | 59001651 | Capacitor (Replaces: D8547901) |
|
$ 43.15 | |||||
| 6 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 7 | B8329801 | Kit, Diode |
|
- | |||||
| 8 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 9 | D7369203 | Transformer |
|
- | |||||
| 10 | D7442102 | Plate-trans Mtg |
|
- | |||||
| 11 | M0220114 | Screw |
|
- | |||||
| 12 | M0254452 | Screw |
|
- | |||||
| 13 | M0272805 | Lock Washer |
|
- | |||||
| 14 | B8339201 | Mov Assy A-k |
|
- | |||||
| 15 | C8807801 | Transformer-filament |
|
- | |||||
| 16 | M0253509 | Screw |
|
- | |||||
| 17 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 18 | C8841603 | Terminal Board |
|
- | |||||
| 19 | M0850507 | Fuse-20a |
|
- | |||||
| 20 | M0308102 | Fuse |
|
- | |||||
| 21 | M0308109 | Fuse Resistor K (Replaces: M0308107) |
|
- | |||||
| 22 | M0308601 | Resistor A |
|
- | |||||
| 23 | M0308607 | Resistor K |
|
- | |||||
| 24 | D7292676 | Jumper Wire |
|
- | |||||
| 24 | D7292655 | Jumper Wire |
|
- | |||||
| 25 | D7292671 | Jumper Wire |
|
- | |||||
| 25 | D7292672 | Jumper Wire |
|
- | |||||
| 26 | YM0258229 | Sems Fastener |
|
- | |||||
| 27 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 28 | M0305202 | Resistor A |
|
- |
