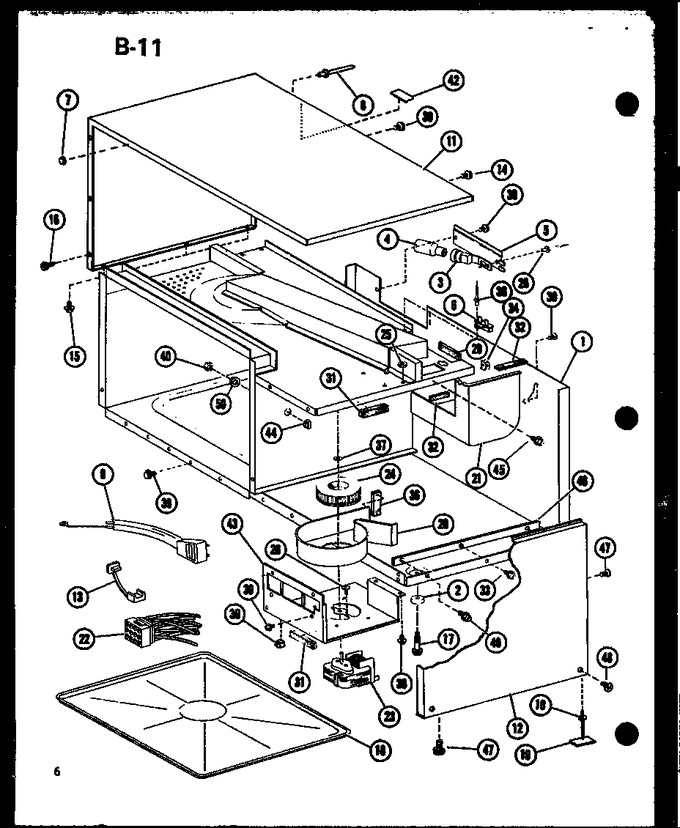

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Page 1
02 - Page 2
03 - Page 3
04 - Page 4
05 - Page 5
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7506212 | Base Pan |
|
- | |||||
| 2 | B5732506 | Foot O.c. Wrapper |
|
- | |||||
| 3 | B5784001 | Socket |
|
- | |||||
| 4 | A3167501 | Bulb Q |
|
$ 28.47 | |||||
| 5 | B5782906 | Access Panel |
|
- | |||||
| 6 | B5795303 | Fuse, Thermal |
|
- | |||||
| 7 | A1511502 | Bumper |
|
- | |||||
| 8 | A4539615 | Rivet-pop |
|
- | |||||
| 9 | B8310501 | Cord, Power |
|
- | |||||
| 10 | D7089603 | Oven Tray Kit |
|
- | |||||
| 11 | D7396704 | Outer Cabinet |
|
- | |||||
| 12 | D7396803 | Access Panel |
|
- | |||||
| 13 | A0319703 | Strain Relief K |
|
- | |||||
| 16 | M0216517 | Screw |
|
- | |||||
| 17 | M0220219 | Screw-shoulder |
|
- | |||||
| 18 | A4539601 | Pop Rivet |
|
- | |||||
| 19 | B5738501 | Seal K |
|
- | |||||
| 20 | D7609401 | Scroll |
|
- | |||||
| 21 | D7349003 | Magnetron Cover |
|
- | |||||
| 22 | D7610701 | Wiring Harness |
|
- | |||||
| 23 | C8793201 | Motor |
|
- | |||||
| 24 | C8793501 | Blower Wheel |
|
- | |||||
| 25 | M0282801 | Lock-nut---k |
|
- | |||||
| 26 | WP3400094 | Screw (Replaces: M0258055) |
|
$ 7.14 | |||||
| 28 | A4539601 | Pop Rivet |
|
- | |||||
| 29 | A3030302 | Gasket |
|
- | |||||
| 30 | M0110508 | Clip |
|
- | |||||
| 31 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 32 | A3030309 | Gasket (per Foot) |
|
- | |||||
| 33 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 34 | M0288213 | Clip |
|
- | |||||
| 36 | A3030308 | Gasket |
|
- | |||||
| 37 | WP3195558 | Clip-blwr Ret (Replaces: M0118903) |
|
$ 7.68 | |||||
| 38 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 39 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 40 | M0281405 | Nut K |
|
- | |||||
| 42 | M0275165 | Tape Alum |
|
- | |||||
| 43 | D7533302 | Mtg Plate |
|
- | |||||
| 44 | B8355401 | Temp Probe Jack K |
|
- | |||||
| 45 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 46 | B8356701 | Brace, Base Pan |
|
- | |||||
| 47 | M0259318 | Screw Torx |
|
- | |||||
| 48 | M0243324 | Screw Torx |
|
- | |||||
| 49 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 7.04 | ||||
| 50 | M0270536 | Washer |
|
- |
