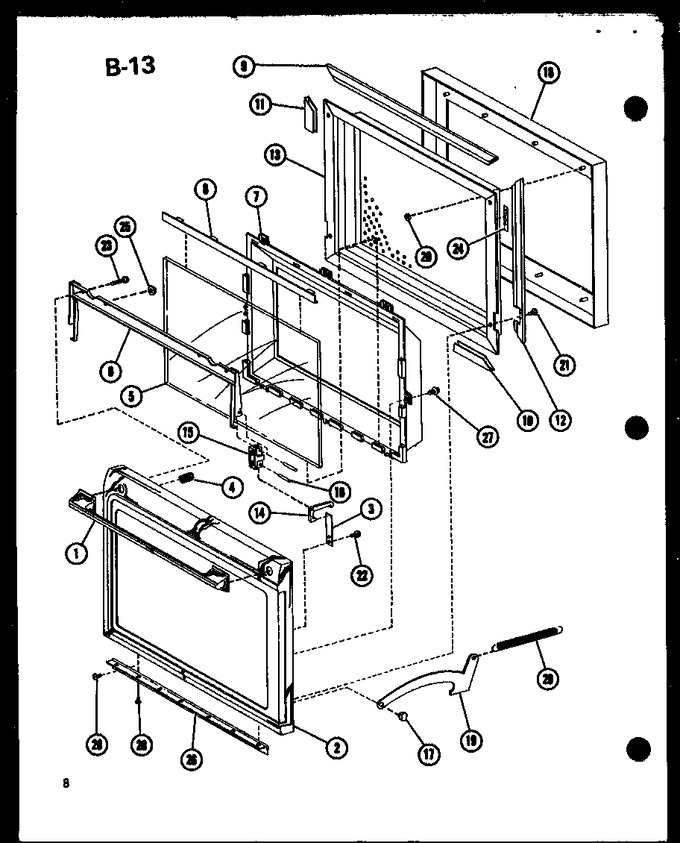

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7517701		Handle, Door		Appelez-nous	-
2	D7533701		Outer Door		Appelez-nous	-
3	A1008501		Spring Latch		Appelez-nous	-
4	A1030101		Spring, Handle		Appelez-nous	-
5	D7534001		Outer Window A		Appelez-nous	-
6	B8340901		Handle Lever Weld		Appelez-nous	-
7	D7533601		Retainer		Appelez-nous	-
8	D7533501		Cap Lens Retainer		Appelez-nous	-
9	D7542001		Gasket, Door		Appelez-nous	-
10	D7542002		Gasket, Door		Appelez-nous	-
11	D7542003		Gasket, Door		Appelez-nous	-
12	D7542004		Gasket, Door		Appelez-nous	-
13	C8755403		Inner Door Assy		Appelez-nous	-
14	B8333802		Latch Hook		Appelez-nous	-
15	C8885101		Pivot Block		Appelez-nous	-
16	M1200106		Pin A		Appelez-nous	-
17	A1028501		Pin Counterbalance		Appelez-nous	-
18	D7564601		Inner Door Mold Assy		Appelez-nous	-
19	C8890601		Counterbalance Arm		Appelez-nous	-
20	M0288801		Nut K		Appelez-nous	-
21	M0259218		Screw		Appelez-nous	-
22	M0234016		Screw		Appelez-nous	-
23	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
24	M0275115		Tape Per Roll		Appelez-nous	-
25	B8344702		Bumper Rubber		Appelez-nous	-
26	C8886601		Hinge		Appelez-nous	-
27	M0253704		Screw A K		Appelez-nous	-
28	M0259203		Screw		Appelez-nous	-
29	C8893501		Spring Dr Latch K		Appelez-nous	-
