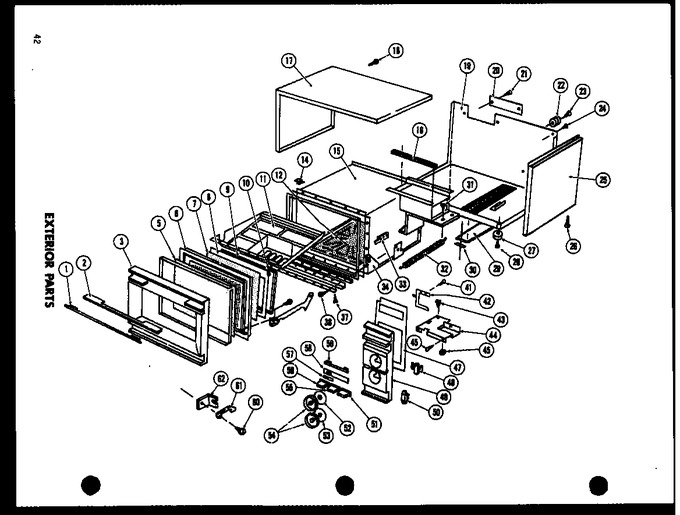

01 - Exterior Parts
02 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B5604801 | Insert |
|
- | |||||
| 2 | D3964801 | Handle |
|
- | |||||
| 3 | D3964603 | Door Casting, Outer |
|
- | |||||
| 5 | A3168001 | Window Outer A |
|
- | |||||
| 6 | C3605603 | Weldment, Inner Door Ring |
|
- | |||||
| 7 | A3167901 | Inner Window A-k |
|
- | |||||
| 8 | D7106401 | Molding Inner W |
|
- | |||||
| 9 | B5629904 | Gasket Right A |
|
- | |||||
| 9 | B5629903 | Gasket Bottom A |
|
- | |||||
| 9 | B5629902 | Gasket, Door, Left Side |
|
- | |||||
| 10 | M0230015 | Screw |
|
- | |||||
| 11 | D7106201 | Grease Shield |
|
- | |||||
| 12 | D7089601 | Oven Tray Kit |
|
- | |||||
| 14 | M0114901 | Clip |
|
- | |||||
| 15 | D3997402 | Oven Wldmt |
|
- | |||||
| 16 | A3030302 | Gasket |
|
- | |||||
| 17 | C3595704 | Wrapper, Outer Case |
|
- | |||||
| 18 | M0230015 | Screw |
|
- | |||||
| 19 | C3639902 | Base Pan Wld |
|
- | |||||
| 20 | A3092001 | Panel |
|
- | |||||
| 21 | M0230015 | Screw |
|
- | |||||
| 22 | M0011001 | Foot |
|
- | |||||
| 22 | M0270501 | Washer |
|
- | |||||
| 23 | M0221132 | Screw |
|
- | |||||
| 24 | M0230015 | Screw |
|
- | |||||
| 25 | C3596304 | Access Panel |
|
- | |||||
| 26 | M0230015 | Screw |
|
- | |||||
| 27 | M0011001 | Foot |
|
- | |||||
| 27 | M0270501 | Washer |
|
- | |||||
| 28 | M0221132 | Screw |
|
- | |||||
| 29 | A3094901 | Filter |
|
- | |||||
| 30 | M0111203 | Clip |
|
- | |||||
| 31 | M0250630 | Screw K |
|
- | |||||
| 32 | M0775001 | Spring |
|
- | |||||
| 33 | B5658401 | Bracket,latch |
|
- | |||||
| 34 | B5662101 | Assembly, Counterbalance Brack |
|
- | |||||
| 34 | B5642701 | Bracket, Counterbalance, R.h. |
|
- | |||||
| 37 | M0214503 | Screw |
|
- | |||||
| 38 | M0227501 | Screw |
|
- | |||||
| 41 | M0228015 | Screw |
|
- | |||||
| 42 | C3652201 | Bar Lock |
|
- | |||||
| 43 | M0256821 | Sems Fastner |
|
- | |||||
| 44 | C3626901 | Bracket,switch |
|
- | |||||
| 45 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 46 | M0228015 | Screw |
|
- | |||||
| 47 | B5660201 | Front-o C |
|
- | |||||
| 48 | A3152501 | Buzzer |
|
- | |||||
| 49 | D7104201 | Escutcheon,control |
|
- | |||||
| 50 | A3116201 | Switch |
|
- | |||||
| 51 | B5631003 | Light Button |
|
- | |||||
| 52 | B5661001 | Indicator, Escutcheon |
|
- | |||||
| 53 | B5661002 | Indicator, Escutcheon |
|
- | |||||
| 54 | C3659801 | Braille Knob Kit |
|
- | |||||
| 54 | D7028701 | Knob A |
|
- | |||||
| 54 | C3659802 | Braille Knob Kit |
|
- | |||||
| 55 | B5631002 | Stop Button |
|
- | |||||
| 56 | B5631001 | Start Button |
|
- | |||||
| 57 | C3652401 | Side Lock |
|
- | |||||
| 58 | C3654101 | Nameplate, Escutcheon |
|
- | |||||
| 59 | B5604701 | Insert- K |
|
- | |||||
| 60 | M0219302 | Screw |
|
- | |||||
| 61 | A3148901 | Latch |
|
- | |||||
| 62 | A3149101 | Retainer |
|
- | |||||
| NI | M0228016 | Screw |
|
- | |||||
| NI | B5642501 | Counter Balance Lh |
|
- | |||||
| NI | B5642502 | Counter Balance Rh |
|
- | |||||
| NI | C3637201 | Gasket |
|
- | |||||
| NI | B5603201 | Hinge Door |
|
- | |||||
| NI | A3127102 | Shim |
|
- | |||||
| NI | A3127101 | Shim |
|
- | |||||
| NI | A4591113 | Gasket, Inner Window, 8-3/16`` |
|
- | |||||
| NI | A4591601 | Adhensive, Door Insert |
|
- | |||||
| NI | M0117001 | Clip |
|
- | |||||
| NI | M0234117 | Screw |
|
- | |||||
| NI | M0287703 | Nut K |
|
- | |||||
| NI | M0275115 | Tape Per Roll |
|
- | |||||
| NI | M0500101 | Grommet |
|
- | |||||
| NI | M0274032 | Washer Non-metal |
|
- | |||||
| NI | M0229916 | Screw T.c |
|
- | |||||
| NI | A4591112 | Gasket, Inner Window, 13-3/8`` |
|
- | |||||
| NI | M0230015 | Screw |
|
- |
