SELECT A DIAGRAM

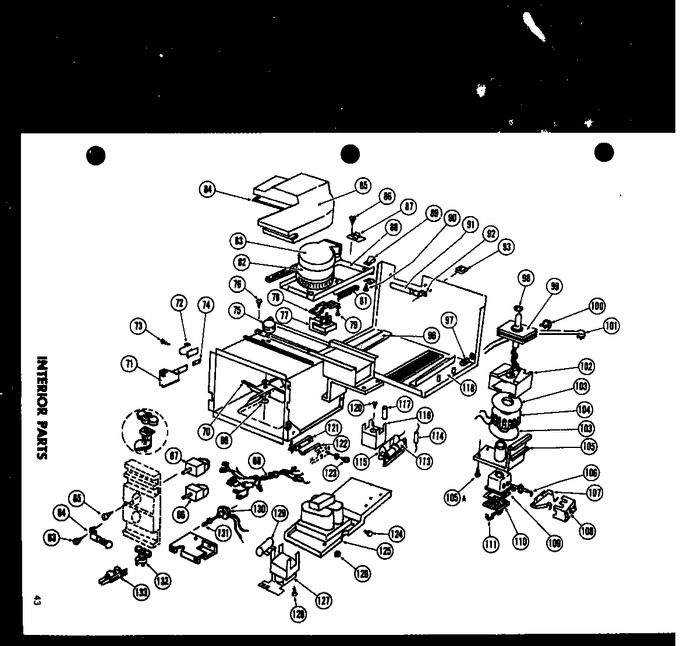

01 - Exterior Parts


02 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
63	M0228015		Screw		Appelez-nous	-
64	W10857122		Light Bulb   (Replaces: M0360001)				$ 12.45
64	B5603103		Socket K		Appelez-nous	-
65	WPW10068250		Screw   (Replaces: M0202530)				$ 3.66
66	B5630901		Timer, 30 Minute		Appelez-nous	-
67	B5631601		Timer, 5 Minute		Appelez-nous	-
68	C3648302		Wiring Harness		Appelez-nous	-
69	A3109101		Washer		Appelez-nous	-
70	C3609101		Fan Blade, Stirrer		Appelez-nous	-
71	B5662001		Weldment, Counterbalance Brack		Appelez-nous	-
72	A3171601		Switch Preformed		Appelez-nous	-
73	M0256821		Sems Fastner		Appelez-nous	-
74	M0289502		Speed Nut		Appelez-nous	-
75	B5602803		Motor		Appelez-nous	-
76	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
77	C3656501		Motor		Appelez-nous	-
78	B5647301		Motor Mount		Appelez-nous	-
79	YA0381501		Clip, Waterline		Appelez-nous	-
79	M0219018		Screw		Appelez-nous	-
81	A3030302		Gasket		Appelez-nous	-
82	B5661101		Ass`y, Blower Wheel		Appelez-nous	-
83	C3639001		Scroll-blower		Appelez-nous	-
84	A3030302		Gasket		Appelez-nous	-
85	D7106003		Duct, Air Discharge		Appelez-nous	-
86	M0216517		Screw		Appelez-nous	-
87	B5607002		Terminal Board		Appelez-nous	-
88	B5660301		Bulkhead		Appelez-nous	-
89	M0102310		Clamp, Wiring		Appelez-nous	-
89	M0102402		Clamp, Power Cord To Bulkhead		Appelez-nous	-
90	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
90	M0216517		Screw		Appelez-nous	-
91	WPA3073101		Bulb, Oven Light   (Replaces: A3079002)			Immediately	$ 10.90
92	A3091004		Socket		Appelez-nous	-
93	M0288302		Speed Nut		Appelez-nous	-
96	B0572828		Insulation Ft. K		Appelez-nous	-
97	M0370001		Strain Relief		Appelez-nous	-
98	B5621901		Washer		Appelez-nous	-
99	M0371101		Magnetron		Appelez-nous	-
100	M0115802		Clip		Appelez-nous	-
100	M0370403		Thermal Prot		Appelez-nous	-
101	B5602302		Power Cord		Appelez-nous	-
102	C3596101		Support		Appelez-nous	-
103	M0274028		Washer		Appelez-nous	-
104	M0370602		Magnet Coil		Appelez-nous	-
105	B5648401		Mag Housing K		Appelez-nous	-
105	M0250630		Screw K		Appelez-nous	-
106	A3148801		Capacitor K		Appelez-nous	-
107	B5655901		Clip K		Appelez-nous	-
108	B5656001		Shield Hv K		Appelez-nous	-
109	A3148701		Gasket		Appelez-nous	-
110	B5647901		Cover Cap Box K		Appelez-nous	-
111	A3145401		Bale Strap K		Appelez-nous	-
113	M0305101		Resistor,adj		Appelez-nous	-
114	M0305201		Resistor		Appelez-nous	-
115	M0300201		Capacitor		Appelez-nous	-
116	A3165201		Rectifier-bridge K		Appelez-nous	-
117	M0325301		Insulator, Term. K		Appelez-nous	-
118	C3639902		Base Pan Wld		Appelez-nous	-
120	M0218116		Screw		Appelez-nous	-
121	A3163401		Switch Preform A		Appelez-nous	-
122	A3166101		Spring,latch		Appelez-nous	-
123	M0256821		Sems Fastner		Appelez-nous	-
123	M0289502		Speed Nut		Appelez-nous	-
124	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
125	C3656001		Transformer K		Appelez-nous	-
126	WP487939		Nut   (Replaces: M0282015)				$ 6.95
127	C3656301		Relay Assy K		Appelez-nous	-
128	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
129	M0305007		Resistor, Relay A		Appelez-nous	-
130	M0340102		Switch, Oven Light		Appelez-nous	-
131	M0281401		Nut A		Appelez-nous	-
132	A3127701		Cam		Appelez-nous	-
133	A3141501		Start Switch		Appelez-nous	-
NI	A4568702		Grommet		Appelez-nous	-
NI	A3165001		Brkt-adj-resistor		Appelez-nous	-
NI	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
NI	A3092001		Panel		Appelez-nous	-
NI	M0256821		Sems Fastner		Appelez-nous	-
NI	M0272605		Washer		Appelez-nous	-
NI	M0230015		Screw		Appelez-nous	-
NI	M0202642		Screw		Appelez-nous	-
NI	M0272511		Washer		Appelez-nous	-
NI	B5631101		Cam,switch		Appelez-nous	-
NI	A3134301		Bearing Insert		Appelez-nous	-
NI	M0111203		Clip		Appelez-nous	-
NI	A3094901		Filter		Appelez-nous	-
NI	M0320901		Terminal		Appelez-nous	-
NI	M0282005		Nut K				$ 7.07

    View Diagram in Separate Window       Print Part List
