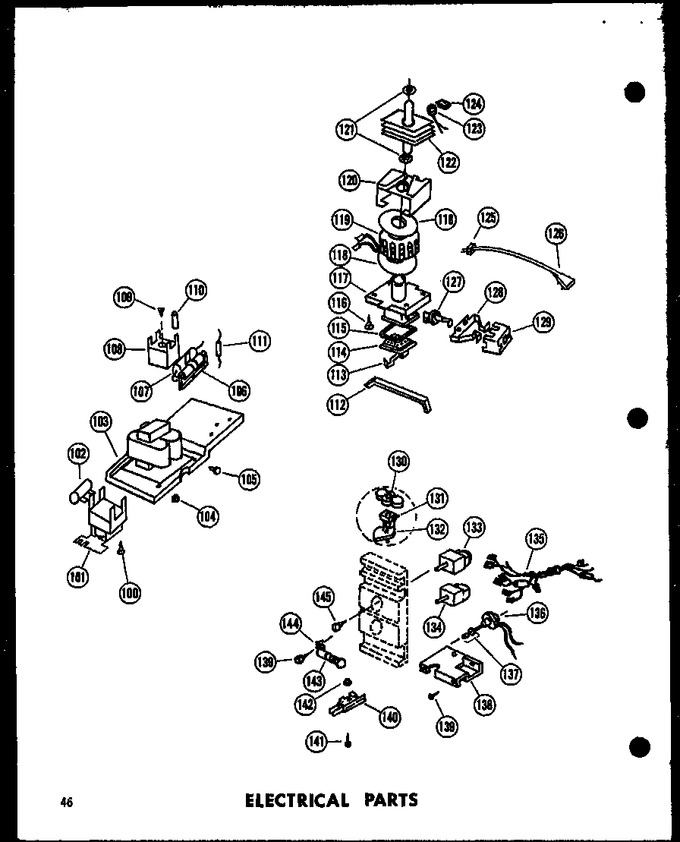

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
100	M0216532		Screw		Appelez-nous	-
100	YA0381501		Clip, Waterline		Appelez-nous	-
100	A0381401		Eyelet K		Appelez-nous	-
101	C3656303		Relay A		Appelez-nous	-
102	M0305007		Resistor, Relay A		Appelez-nous	-
103	C3656001		Transformer K		Appelez-nous	-
104	WP487939		Nut   (Replaces: M0282015)				$ 6.95
105	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
106	A3165001		Brkt-adj-resistor		Appelez-nous	-
106	M0305101		Resistor,adj		Appelez-nous	-
107	M0300201		Capacitor		Appelez-nous	-
108	A3165201		Rectifier-bridge K		Appelez-nous	-
109	M0218116		Screw		Appelez-nous	-
110	M0325301		Insulator, Term. K		Appelez-nous	-
111	M0305201		Resistor		Appelez-nous	-
112	A3164702		Retainer Bar		Appelez-nous	-
113	A3145401		Bale Strap K		Appelez-nous	-
114	B5647901		Cover Cap Box K		Appelez-nous	-
115	A3148701		Gasket		Appelez-nous	-
116	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
117	B5663702		Housing Plate Assy		Appelez-nous	-
118	M0274028		Washer		Appelez-nous	-
119	M0370602		Magnet Coil		Appelez-nous	-
120	C3596101		Support		Appelez-nous	-
121	B5621901		Washer		Appelez-nous	-
122	M0371101		Magnetron		Appelez-nous	-
123	M0370403		Thermal Prot		Appelez-nous	-
124	M0115802		Clip		Appelez-nous	-
125	M0370001		Strain Relief		Appelez-nous	-
126	B5602302		Power Cord		Appelez-nous	-
127	A3148801		Capacitor K		Appelez-nous	-
127	M0281901		Hex Nut		Appelez-nous	-
128	B5655902		Clip K		Appelez-nous	-
129	B5656001		Shield Hv K		Appelez-nous	-
130	A3127701		Cam		Appelez-nous	-
131	A3134301		Bearing Insert		Appelez-nous	-
132	B5631101		Cam,switch		Appelez-nous	-
133	B5631601		Timer, 5 Minute		Appelez-nous	-
134	B5630901		Timer, 30 Minute		Appelez-nous	-
135	D7148101		Wiring Harness		Appelez-nous	-
136	M0340102		Switch, Oven Light		Appelez-nous	-
137	M0281401		Nut A		Appelez-nous	-
137	M0272511		Washer		Appelez-nous	-
138	C3667601		Bracket, Switch Mounting		Appelez-nous	-
139	M0228015		Screw		Appelez-nous	-
140	A3141503		Start Switch, Preform		Appelez-nous	-
141	M0256821		Sems Fastner		Appelez-nous	-
142	M0282005		Nut K				$ 7.07
143	W10857122		Light Bulb   (Replaces: M0360001)				$ 12.45
144	B5603103		Socket K		Appelez-nous	-
145	WPW10068250		Screw   (Replaces: M0202530)				$ 3.66
