SELECT A DIAGRAM

01 - Electrical Parts

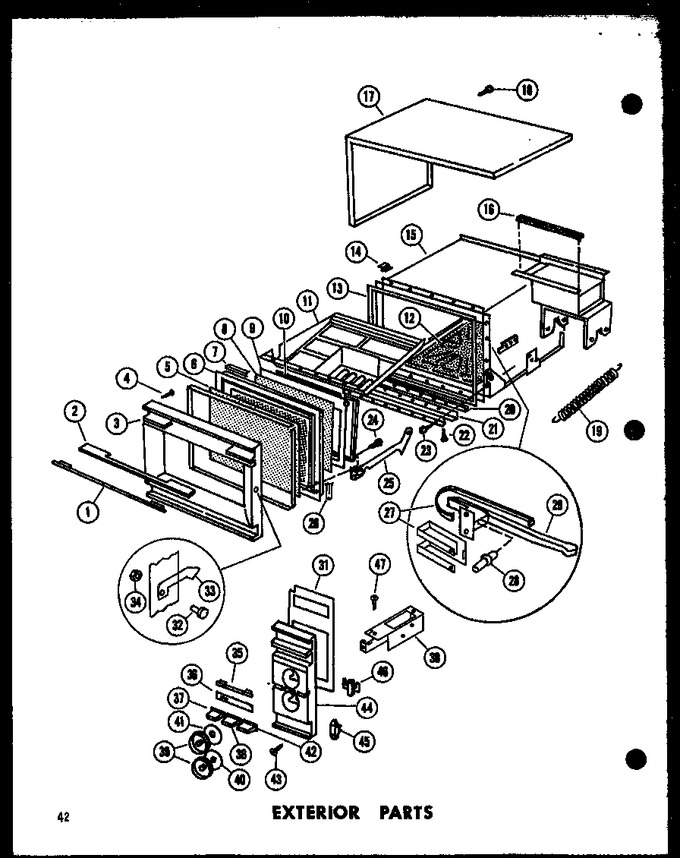

02 - Exterior Parts


03 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A4591601		Adhensive, Door Insert		Appelez-nous	-
1	B5604802		Insert-handle		Appelez-nous	-
2	D3964801		Handle		Appelez-nous	-
3	D7131901		Door Outer		Appelez-nous	-
4	M0234117		Screw		Appelez-nous	-
5	M0287703		Nut K		Appelez-nous	-
5	M0274032		Washer Non-metal		Appelez-nous	-
5	A3168001		Window Outer A		Appelez-nous	-
6	C3605604		Weldment, Inner Door		Appelez-nous	-
7	A4591112		Gasket, Inner Window, 13-3/8``		Appelez-nous	-
8	A3167901		Inner Window A-k		Appelez-nous	-
9	D7106401		Molding Inner W		Appelez-nous	-
10	M0275115		Tape Per Roll		Appelez-nous	-
10	D7141301		Gasket Right A		Appelez-nous	-
10	D7141303		Gasket Bottom A		Appelez-nous	-
10	D7141302		Gasket, Inner Door Panel, R.h.		Appelez-nous	-
11	D7106201		Grease Shield		Appelez-nous	-
12	D7089602		Oven Tray Kit		Appelez-nous	-
13	C3637201		Gasket		Appelez-nous	-
13	M0230015		Screw		Appelez-nous	-
14	M0114901		Clip		Appelez-nous	-
15	D7131301		Oven Wldmt		Appelez-nous	-
16	A3030302		Gasket		Appelez-nous	-
17	C3673001		Wrapper, Outer Case		Appelez-nous	-
18	M0230015		Screw		Appelez-nous	-
19	M0775001		Spring		Appelez-nous	-
20	A3127101		Shim		Appelez-nous	-
20	A3127102		Shim		Appelez-nous	-
21	B5603202		Hinge, Door		Appelez-nous	-
22	M0227501		Screw		Appelez-nous	-
23	M0214503		Screw		Appelez-nous	-
24	M0228016		Screw		Appelez-nous	-
25	B5642501		Counter Balance Lh		Appelez-nous	-
25	B5642502		Counter Balance Rh		Appelez-nous	-
26	A4591113		Gasket, Inner Window, 8-3/16``		Appelez-nous	-
27	A3183501		Spring-reset Arm		Appelez-nous	-
27	B5685301		Spring-reset Arm		Appelez-nous	-
28	A3183103		Button-reset Arm		Appelez-nous	-
29	C3667501		Arm-reset		Appelez-nous	-
30	C3666901		Bracket, Solenoid & Latch Swit		Appelez-nous	-
31	B5660202		Front-o C		Appelez-nous	-
32	A3183901		Rivet		Appelez-nous	-
33	A3183001		Latch, Door		Appelez-nous	-
34	A3184001		Clip, Round, Push-on, Retainer		Appelez-nous	-
35	B5604702		Insert- K		Appelez-nous	-
36	B5673201		Name Plate K		Appelez-nous	-
37	B5631004		Start Button		Appelez-nous	-
38	B5631005		Stop Button		Appelez-nous	-
39	D7028701		Knob A		Appelez-nous	-
39	M0117001		Clip		Appelez-nous	-
40	B5672802		Gasket, Mullion, L.h.		Appelez-nous	-
41	B5672801		Indicator, Escutcheon		Appelez-nous	-
42	B5631006		Light Button		Appelez-nous	-
43	M0229916		Screw T.c		Appelez-nous	-
44	D7131701		Escutcheon, Control		Appelez-nous	-
45	A3116201		Switch		Appelez-nous	-
46	A3152501		Buzzer		Appelez-nous	-
46	M0500101		Grommet		Appelez-nous	-
47	M0230015		Screw		Appelez-nous	-
