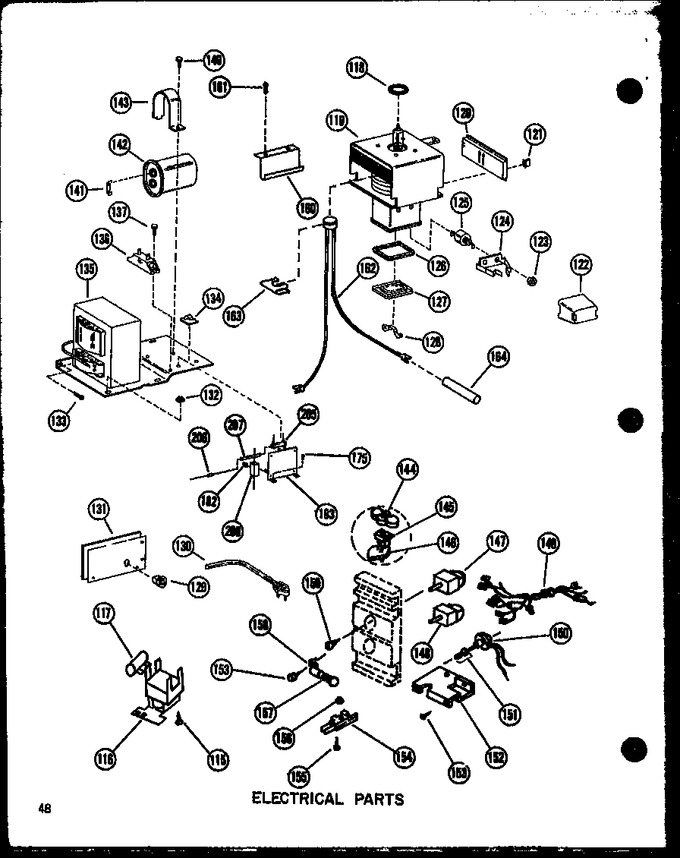

01 - Electrical Parts


02 - Exterior Parts


03 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
115	M0216532		Screw		Appelez-nous	-
115	YA0381501		Clip, Waterline		Appelez-nous	-
115	A0381401		Eyelet K		Appelez-nous	-
116	C3656303		Relay A		Appelez-nous	-
117	M0305007		Resistor, Relay A		Appelez-nous	-
118	A3185102		Gasket, Magnetron		Appelez-nous	-
119	D7157002		Magnetron Kit,700w		Appelez-nous	-
120	B5679101		Baffle		Appelez-nous	-
121	M0113504		Clip K		Appelez-nous	-
122	B5656001		Shield Hv K		Appelez-nous	-
123	M0281901		Hex Nut		Appelez-nous	-
124	B5655902		Clip K		Appelez-nous	-
125	A3148801		Capacitor K		Appelez-nous	-
126	A3148701		Gasket		Appelez-nous	-
127	B5647901		Cover Cap Box K		Appelez-nous	-
128	A3145401		Bale Strap K		Appelez-nous	-
129	M0370001		Strain Relief		Appelez-nous	-
130	B5602302		Power Cord		Appelez-nous	-
132	WP487939		Nut   (Replaces: M0282015)				$ 6.95
133	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
134	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
135	D7152101		Transformer		Appelez-nous	-
136	11QBP0235		Kit, Diode   (Replaces: B5685801)				$ 15.33
137	M0216517		Screw		Appelez-nous	-
141	M0305202		Resistor A		Appelez-nous	-
142	R0160002		Capacitor Assy		Appelez-nous	-
143	A3197101		Strap-capacitor A		Appelez-nous	-
144	A3127701		Cam		Appelez-nous	-
145	A3134301		Bearing Insert		Appelez-nous	-
146	B5631101		Cam,switch		Appelez-nous	-
147	B5631601		Timer, 5 Minute		Appelez-nous	-
148	B5681902		Timer, 30 Minute		Appelez-nous	-
149	D7182101		Wiring Harness		Appelez-nous	-
150	M0340105		Switch		Appelez-nous	-
151	M0272511		Washer		Appelez-nous	-
151	M0281401		Nut A		Appelez-nous	-
152	C3667602		Bracket, Switch Mounting		Appelez-nous	-
153	M0228015		Screw		Appelez-nous	-
154	A3141503		Start Switch, Preform		Appelez-nous	-
155	M0202521		Screw		Appelez-nous	-
156	M0282005		Nut K				$ 7.07
157	W10857122		Light Bulb   (Replaces: M0360001)				$ 12.45
158	B5603103		Socket K		Appelez-nous	-
159	WPW10068250		Screw   (Replaces: M0202530)				$ 3.66
160	B5691601		Support-magnetron		Appelez-nous	-
161	M0216517		Screw		Appelez-nous	-
162	M0370403		Thermal Prot		Appelez-nous	-
163	M0115802		Clip		Appelez-nous	-
164	A0304501		Connector A-k		Appelez-nous	-
175	M0218116		Screw		Appelez-nous	-
182	M0325301		Insulator, Term. K		Appelez-nous	-
182	M0325501		Insulator, Pod K		Appelez-nous	-
183	B5687402		Terminal Board		Appelez-nous	-
205	M0305009		Resistor A		Appelez-nous	-
206	M0308102		Fuse		Appelez-nous	-
207	M0321701		Sleeve		Appelez-nous	-
208	M0305204		Resistor		Appelez-nous	-
