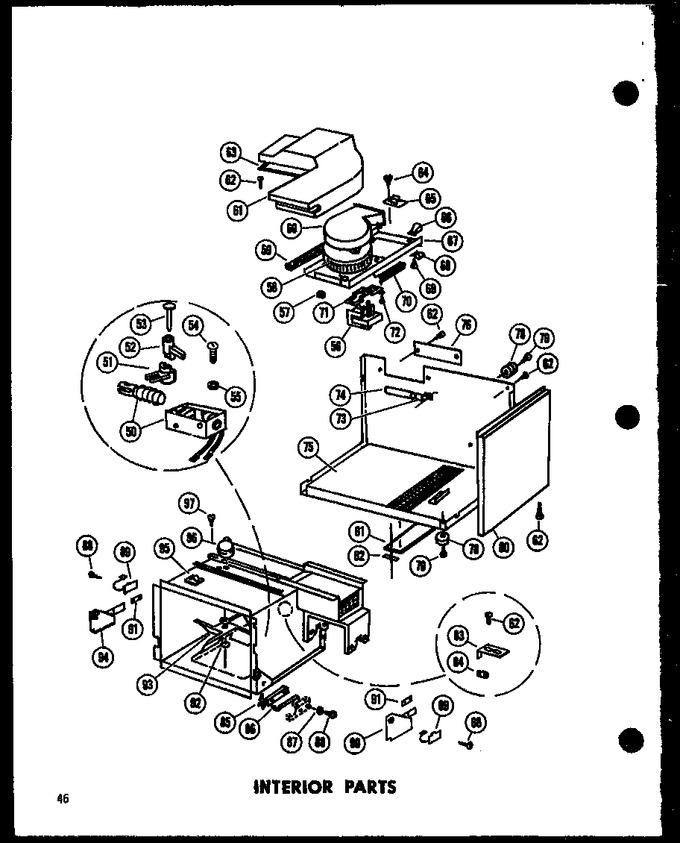

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
50	B5682101		Solenoid		Appelez-nous	-
51	B5672503		Bell Crank		Appelez-nous	-
52	B5672502		Bell Crank		Appelez-nous	-
53	A3182601		Pin Bell-crank		Appelez-nous	-
54	M0201414		Screw		Appelez-nous	-
55	M0270524		Washer		Appelez-nous	-
56	C3656501		Motor		Appelez-nous	-
57	A4568702		Grommet		Appelez-nous	-
58	B5661101		Ass`y, Blower Wheel		Appelez-nous	-
59	A3030302		Gasket		Appelez-nous	-
60	C3667301		Scroll-blower		Appelez-nous	-
61	D7106003		Duct, Air Discharge		Appelez-nous	-
62	M0230015		Screw		Appelez-nous	-
63	A3030302		Gasket		Appelez-nous	-
64	M0216517		Screw		Appelez-nous	-
65	B5607002		Terminal Board		Appelez-nous	-
66	M0104102		Clip, Cord				$ 8.10
67	D7167801		Bulkhead		Appelez-nous	-
68	M0320901		Terminal		Appelez-nous	-
69	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
70	A3030302		Gasket		Appelez-nous	-
71	B5647301		Motor Mount		Appelez-nous	-
72	A0381401		Eyelet K		Appelez-nous	-
72	M0270504		Washer		Appelez-nous	-
72	M0216517		Screw		Appelez-nous	-
72	YA0381501		Clip, Waterline		Appelez-nous	-
72	M0272605		Washer		Appelez-nous	-
72	M0219018		Screw		Appelez-nous	-
72	M0202642		Screw		Appelez-nous	-
73	B5691201		Socket-oven Light		Appelez-nous	-
74	A3167501		Bulb Q				$ 28.47
75	C3639908		Base Pan Wldmt		Appelez-nous	-
76	A3198101		Panel-bulb Access		Appelez-nous	-
78	M0011001		Foot		Appelez-nous	-
79	M0221132		Screw		Appelez-nous	-
79	M0270519		Washer		Appelez-nous	-
80	C3689601		Access Panel		Appelez-nous	-
81	A3094901		Filter		Appelez-nous	-
82	M0111203		Clip		Appelez-nous	-
83	B5680301		Bracket-cut Out		Appelez-nous	-
84	B5665803		Thermal Cut-out		Appelez-nous	-
85	A3163405		Switch Preform A		Appelez-nous	-
86	A3148501		Spring, Latch		Appelez-nous	-
87	M0282005		Nut K				$ 7.07
88	M0227525		Screw A-k		Appelez-nous	-
89	A3162503		Switch, Interlock, Left Hand		Appelez-nous	-
90	B5693202		Bracket, Counterbalance, Right		Appelez-nous	-
91	M0282005		Nut K				$ 7.07
92	A3109101		Washer		Appelez-nous	-
93	C3609101		Fan Blade, Stirrer		Appelez-nous	-
94	B5693201		Bracket, Counterbalance, Left		Appelez-nous	-
95	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
96	B5602803		Motor		Appelez-nous	-
97	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
