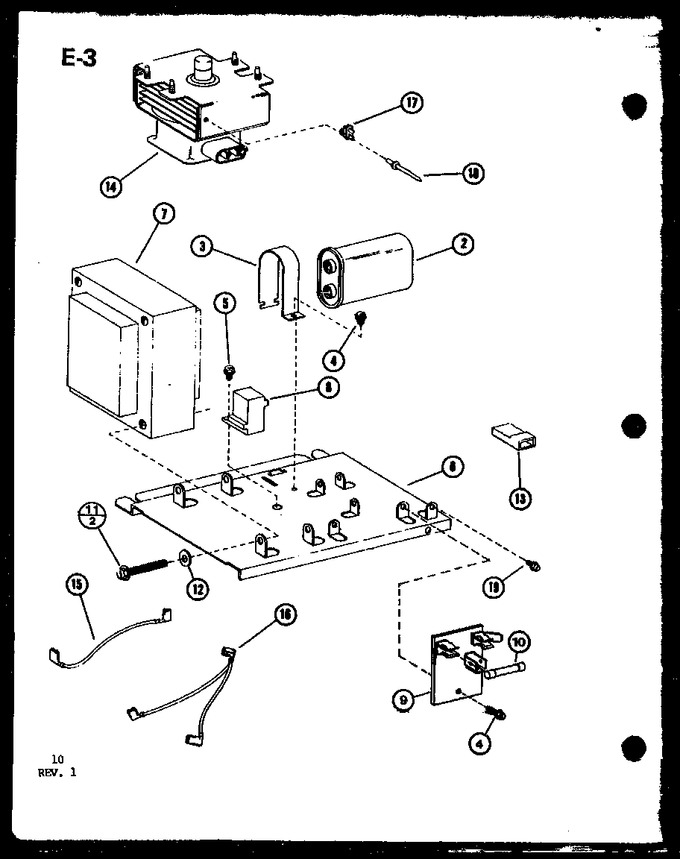

SELECT A DIAGRAM

01 - Page 1


02 - Page 2


03 - Page 3


04 - Page 4


05 - Page 5


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	59001651		Capacitor   (Replaces: D8547901)				$ 43.15
3	A3257003		Strap-capacitor		Appelez-nous	-
4	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
5	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
6	D7351804		Transformer Mounting Plate		Appelez-nous	-
7	D7391403		Transformer Kit		Appelez-nous	-
8	D7391403		Transformer Kit		Appelez-nous	-
9	C8845901		Terminal Board K		Appelez-nous	-
10	ABC20		Fuse 20 Amp K   (Replaces: M0805101)			Immediately	$ 10.31
11	M0254452		Screw		Appelez-nous	-
12	M0272805		Lock Washer		Appelez-nous	-
13	M0325301		Insulator, Term. K		Appelez-nous	-
14	C8761711		Magnetron		Appelez-nous	-
15	D7365120		Hv Wire		Appelez-nous	-
15	D7292618		Jumper Wire		Appelez-nous	-
16	D7292652		Jumper Wire		Appelez-nous	-
17	B5795304		Fuse, Thermal		Appelez-nous	-
18	A4539602		Pop Rivet		Appelez-nous	-
19	M0218116		Screw		Appelez-nous	-
