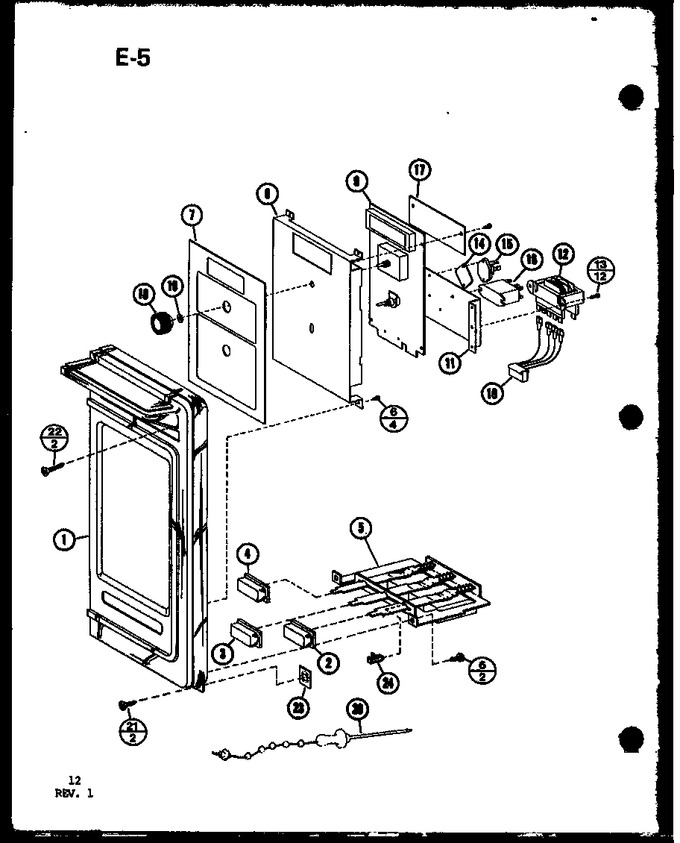

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7533801		Escut. Control		Appelez-nous	-
2	C8869301		Light Button		Appelez-nous	-
3	C8869401		Stop Button		Appelez-nous	-
4	C8869501		Start Button		Appelez-nous	-
5	D7546302		Switch Ssl K		Appelez-nous	-
6	W11084238		Screw   (Replaces: M0234001)		Appelez-nous	-
7	C8906801		Overlay Timer		Appelez-nous	-
8	C8906602		Pntd Timer Mtg Plate		Appelez-nous	-
9	D7578701		Rot-dig-mod Kit		Appelez-nous	-
10	C8905601		Transformer, Control		Appelez-nous	-
11	B8350001		Bracket Timer		Appelez-nous	-
12	C8905801		Transformer, Control		Appelez-nous	-
13	M0234016		Screw		Appelez-nous	-
14	B8337201		Silicone Pad		Appelez-nous	-
15	C8884801		Kit, Triac Assy		Appelez-nous	-
16	C8906701		Relay		Appelez-nous	-
17	B8350401		Insulation Board		Appelez-nous	-
18	C8906901		Knob Control K		Appelez-nous	-
19	M0281404		Nut, Switch		Appelez-nous	-
20	C8821503		Temp Probe		Appelez-nous	-
21	M0243318		Screw, Tf		Appelez-nous	-
22	M0243324		Screw Torx		Appelez-nous	-
23	M0288701		Speed Nut ``u`` Type- Nameplate		Appelez-nous	-
24	A1039301		Spring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
