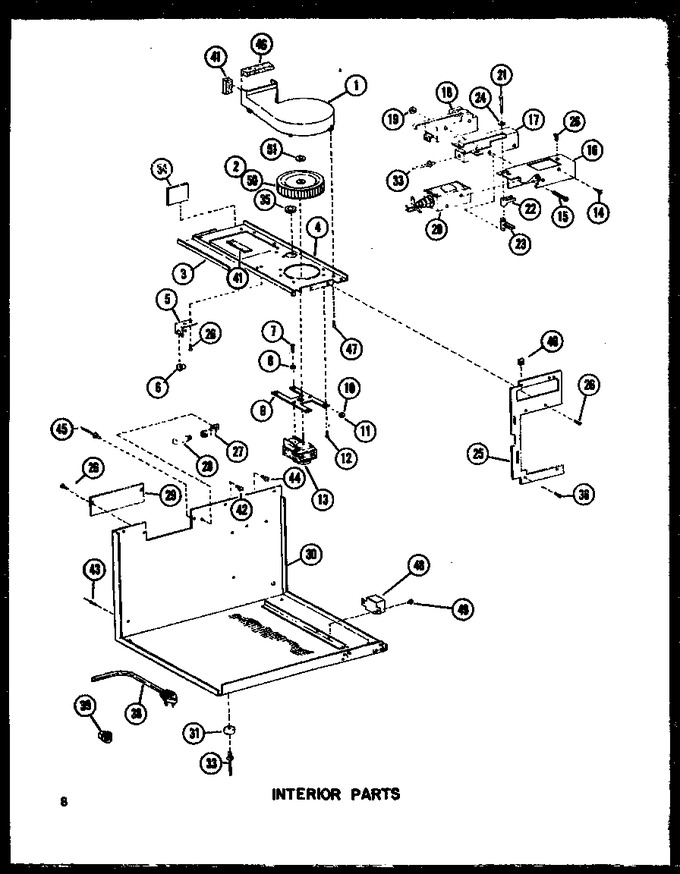

01 - Interior Parts
02 - Interior Parts
03 - Page 1
04 - Page 4
05 - Page 5
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8785801 | Scroll-blower |
|
- | |||||
| 2 | B5661101 | Ass`y, Blower Wheel |
|
- | |||||
| 3 | A3030302 | Gasket |
|
- | |||||
| 4 | D7323001 | Bulk Head |
|
- | |||||
| 5 | B5680301 | Bracket-cut Out |
|
- | |||||
| 6 | B5665803 | Thermal Cut-out |
|
- | |||||
| 7 | M0202642 | Screw |
|
- | |||||
| 8 | M0272605 | Washer |
|
- | |||||
| 9 | B5744001 | Motor Mount-bl |
|
- | |||||
| 10 | YA0381501 | Clip, Waterline |
|
- | |||||
| 11 | A0381401 | Eyelet K |
|
- | |||||
| 12 | M0216517 | Screw |
|
- | |||||
| 13 | C8793201 | Motor |
|
- | |||||
| 14 | M0201414 | Screw |
|
- | |||||
| 15 | M0202521 | Screw |
|
- | |||||
| 16 | C8782401 | Bracket Latch K |
|
- | |||||
| 17 | B5769001 | Latch Spring |
|
- | |||||
| 18 | A3163412 | Switch Preform A |
|
- | |||||
| 19 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 20 | B5682103 | Solenoid, Door Locking |
|
- | |||||
| 21 | A3182602 | Pin-bell Crank |
|
- | |||||
| 22 | B5672502 | Bell Crank |
|
- | |||||
| 23 | B5672503 | Bell Crank |
|
- | |||||
| 24 | M0270530 | Washer |
|
- | |||||
| 25 | D7307001 | Front-oc |
|
- | |||||
| 26 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 27 | B5742001 | Socket-oven Light |
|
- | |||||
| 28 | A3167501 | Bulb Q |
|
$ 28.47 | |||||
| 29 | A3198103 | Panel-bulb Access |
|
- | |||||
| 30 | D7256707 | Base Pan Wld |
|
- | |||||
| 31 | B5732505 | Foot |
|
- | |||||
| 33 | A4539619 | Pop Rivet |
|
- | |||||
| 34 | A3272801 | Gasket |
|
- | |||||
| 35 | A3258801 | Grommet |
|
- | |||||
| 36 | WP59002061 | Screwxxx (Replaces: M0216616) |
|
$ 6.98 | |||||
| 38 | B5703510 | Power Cord |
|
- | |||||
| 39 | M0370001 | Strain Relief |
|
- | |||||
| 40 | M0288701 | Speed Nut ``u`` Type- Nameplate |
|
- | |||||
| 41 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 42 | M0233329 | Screw,sm |
|
- | |||||
| 43 | A4539615 | Rivet-pop |
|
- | |||||
| 44 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 45 | A4539601 | Pop Rivet |
|
- | |||||
| 46 | A3030306 | Gasket |
|
- | |||||
| 47 | M0218116 | Screw |
|
- | |||||
| 48 | B5773501 | Relay |
|
- | |||||
| 49 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 50 | C8793501 | Blower Wheel |
|
- | |||||
| 51 | WP3195558 | Clip-blwr Ret (Replaces: M0118903) |
|
$ 7.68 |
