SELECT A DIAGRAM

01 - Interior Parts


02 - Interior Parts


03 - Page 1


04 - Page 4


05 - Page 5

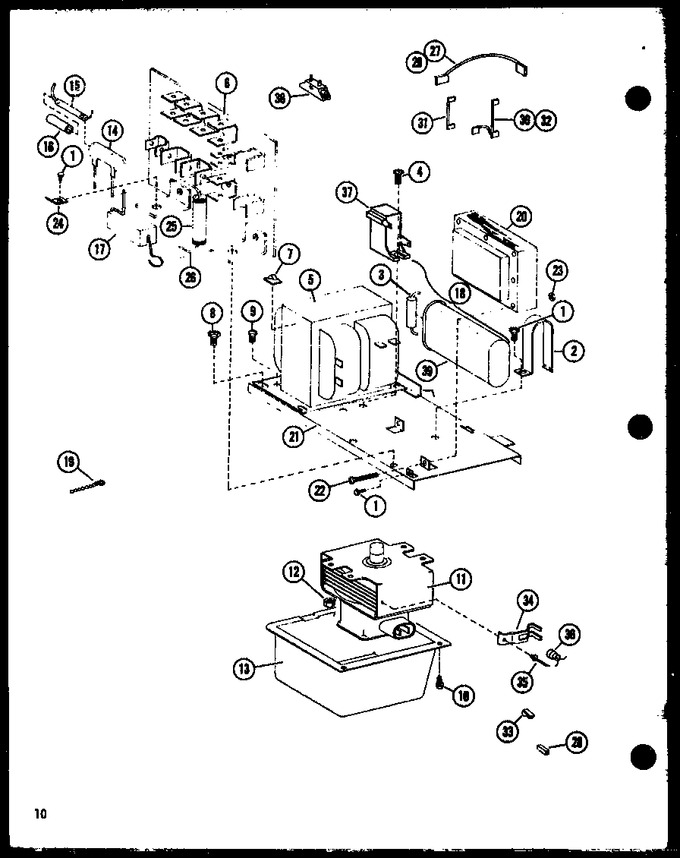

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0218116		Screw		Appelez-nous	-
2	A3257001		Strap-capacitor		Appelez-nous	-
3	M0305202		Resistor A		Appelez-nous	-
4	M0216517		Screw		Appelez-nous	-
5	D7255701		Transformer, Plate		Appelez-nous	-
6	C8791301		Terminal Board		Appelez-nous	-
7	M0104102		Clip, Cord				$ 8.10
8	YM0258229		Sems Fastener		Appelez-nous	-
9	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
10	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
11	C8761701		Magnetron		Appelez-nous	-
12	WP488130		Nut   (Replaces: M0282007)				$ 6.27
13	C8785701		Cover-magnetron		Appelez-nous	-
14	M0305009		Resistor A		Appelez-nous	-
15	M0308102		Fuse		Appelez-nous	-
16	M0321701		Sleeve		Appelez-nous	-
17	M0305204		Resistor		Appelez-nous	-
18	R0160021		Capacitor Assy		Appelez-nous	-
19	A0321201		Tie, Electrical		Appelez-nous	-
20	C8788003		Transformer Filament		Appelez-nous	-
21	D7255502		Mtg Plate-trans		Appelez-nous	-
22	M0204346		Screw		Appelez-nous	-
23	M0282005		Nut K				$ 7.07
24	M0320901		Terminal		Appelez-nous	-
25	M0305402		Resistor Fuse Kit		Appelez-nous	-
26	M0308101		Fuse				$ 9.87
27	D7365101		Jumper Wire		Appelez-nous	-
28	M0325301		Insulator, Term. K		Appelez-nous	-
29	D7292618		Jumper Wire		Appelez-nous	-
30	D7292617		Wire, Jumper, Rectifiers Fuse		Appelez-nous	-
31	D7292619		Jumper Wire		Appelez-nous	-
32	D7292620		Jumper Wire		Appelez-nous	-
33	M0325501		Insulator, Pod K		Appelez-nous	-
34	B5725102		Clip		Appelez-nous	-
35	A4539601		Pop Rivet		Appelez-nous	-
36	B5665810		Thermal Cut Out		Appelez-nous	-
37	B5767802		Kit, Diode		Appelez-nous	-
38	11QBP0235		Kit, Diode   (Replaces: B5685801)				$ 15.33
39	C3679502		Capacitor Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
