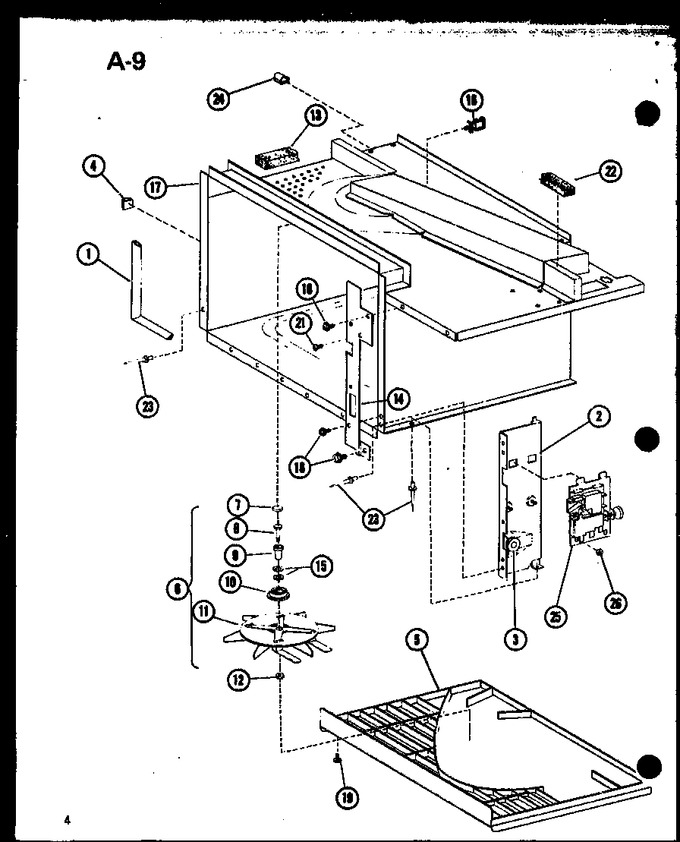

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8882101		Gasket, Oven Cavity		Appelez-nous	-
2	C8889601		Latch Bracket Lh Assy		Appelez-nous	-
2	C8889602		Latch Bracket Rh Assy		Appelez-nous	-
3	R0157145		Roller Assy Kit		Appelez-nous	-
4	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 7.00
5	D7544001		Grease Shield		Appelez-nous	-
6	C8806701		Assy, Antenna		Appelez-nous	-
7	B5792601		Bearing Cap		Appelez-nous	-
8	B5783101		Stub-antenna A		Appelez-nous	-
9	B5783001		Bearing-antenna A		Appelez-nous	-
10	C8838501		Bushing A		Appelez-nous	-
11	R0183053		Assy, Antenna		Appelez-nous	-
12	M0281203		Nut A		Appelez-nous	-
13	A3263901		Gasket		Appelez-nous	-
14	D7533902		Flange, Ov-cov Pntd		Appelez-nous	-
15	M0274044		Washer		Appelez-nous	-
16	B5667303		Clip		Appelez-nous	-
17	D7350511		Oven Weld.		Appelez-nous	-
18	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
19	M0211516		Screw A K		Appelez-nous	-
21	M0217514		Screw		Appelez-nous	-
22	A3030303		Gasket (per Foot)		Appelez-nous	-
23	A4539601		Pop Rivet		Appelez-nous	-
24	M0118801		Clip		Appelez-nous	-
25	C8889902		Switch, Interlock		Appelez-nous	-
25	C8889901		Switch, Interlock		Appelez-nous	-
26	M0282005		Nut K				$ 7.07
