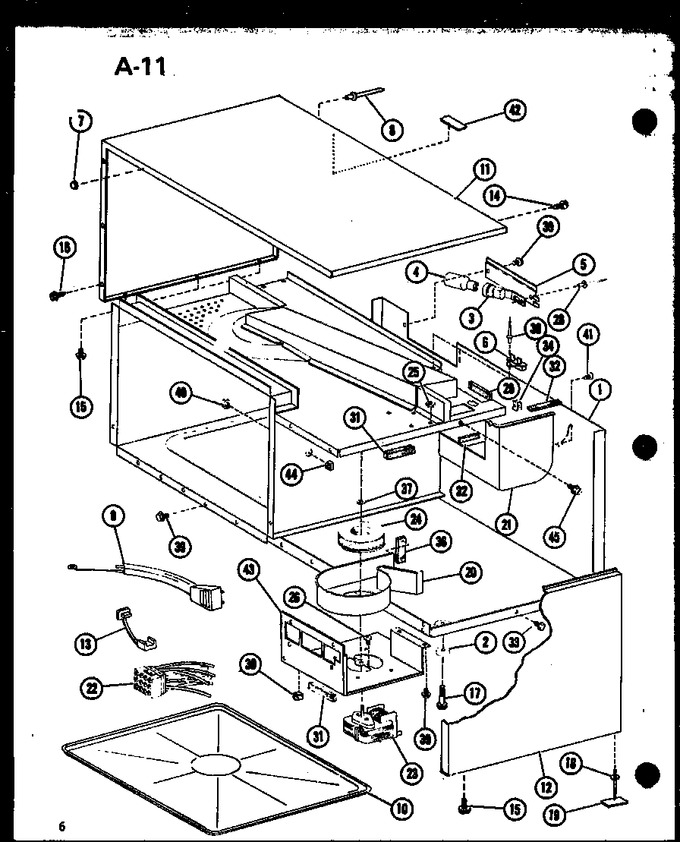

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7506205		Base Pan		Appelez-nous	-
2	B5732506		Foot O.c. Wrapper		Appelez-nous	-
3	B5784001		Socket		Appelez-nous	-
4	A3167504		Bulb Q		Appelez-nous	-
5	B5782906		Access Panel		Appelez-nous	-
6	B5795303		Fuse, Thermal		Appelez-nous	-
7	A1511502		Bumper		Appelez-nous	-
8	A4539615		Rivet-pop		Appelez-nous	-
9	B8310501		Cord, Power		Appelez-nous	-
10	D7089603		Oven Tray Kit		Appelez-nous	-
11	D7378105		Wrapper		Appelez-nous	-
12	D7378004		Access Panel Pntd		Appelez-nous	-
13	A0319703		Strain Relief K		Appelez-nous	-
14	M0213815		Screw		Appelez-nous	-
15	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
16	M0216517		Screw		Appelez-nous	-
17	M0220219		Screw-shoulder		Appelez-nous	-
18	A4539601		Pop Rivet		Appelez-nous	-
19	B5738501		Seal K		Appelez-nous	-
20	C8797201		Blower Scroll		Appelez-nous	-
21	D7349002		Magnetron Cover		Appelez-nous	-
22	D7565201		Wiring Harness		Appelez-nous	-
23	C8793201		Motor		Appelez-nous	-
24	C8793501		Blower Wheel		Appelez-nous	-
25	M0282801		Lock-nut---k		Appelez-nous	-
26	WP3400094		Screw   (Replaces: M0258055)				$ 7.14
28	A4539601		Pop Rivet		Appelez-nous	-
29	A3030302		Gasket		Appelez-nous	-
30	M0110508		Clip		Appelez-nous	-
31	A3030303		Gasket (per Foot)		Appelez-nous	-
32	A3030309		Gasket (per Foot)		Appelez-nous	-
33	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 7.05
34	M0288213		Clip		Appelez-nous	-
36	A3030308		Gasket		Appelez-nous	-
37	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
38	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
39	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
40	A3275701		Nut-decorative		Appelez-nous	-
41	M0216519		Screw		Appelez-nous	-
42	M0275165		Tape Alum		Appelez-nous	-
43	D7533302		Mtg Plate		Appelez-nous	-
44	A3275601		Jack Assembly		Appelez-nous	-
45	M0216516		Screw		Appelez-nous	-
