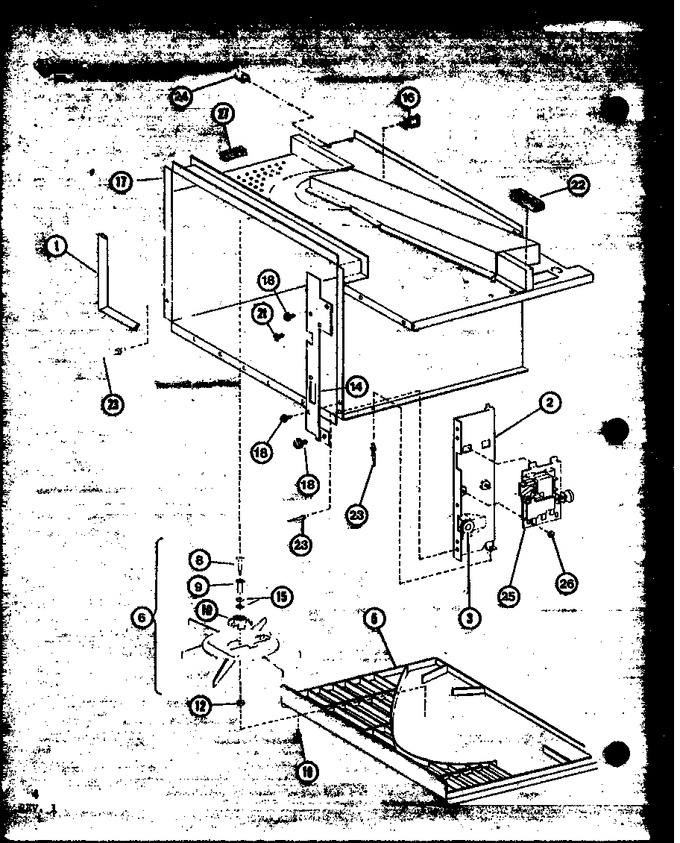

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C8882101 | Gasket, Oven Cavity |
|
- | |||||
| 2 | C8889602 | Latch Bracket Rh Assy |
|
- | |||||
| 2 | C8889601 | Latch Bracket Lh Assy |
|
- | |||||
| 3 | R0157145 | Roller Assy Kit |
|
- | |||||
| 5 | D7544002 | Grease Shield |
|
- | |||||
| 6 | C8934801 | Antenna Assembly |
|
- | |||||
| 8 | B5783101 | Stub-antenna A |
|
- | |||||
| 9 | B5783002 | Bearing Antenna A |
|
- | |||||
| 10 | D7606301 | Bushing Antenna A |
|
- | |||||
| 12 | M0281203 | Nut A |
|
- | |||||
| 14 | D7533902 | Flange, Ov-cov Pntd |
|
- | |||||
| 15 | M0274044 | Washer |
|
- | |||||
| 16 | B5667303 | Clip |
|
- | |||||
| 17 | D7350519 | Oven Weld |
|
- | |||||
| 18 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 19 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 21 | M0217514 | Screw |
|
- | |||||
| 22 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 23 | A4539601 | Pop Rivet |
|
- | |||||
| 24 | M0118801 | Clip |
|
- | |||||
| 25 | C8889907 | Interlock Switch |
|
- | |||||
| 25 | C8889906 | Interlock Switch |
|
- | |||||
| 26 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 27 | A3263903 | Gasket |
|
- |
